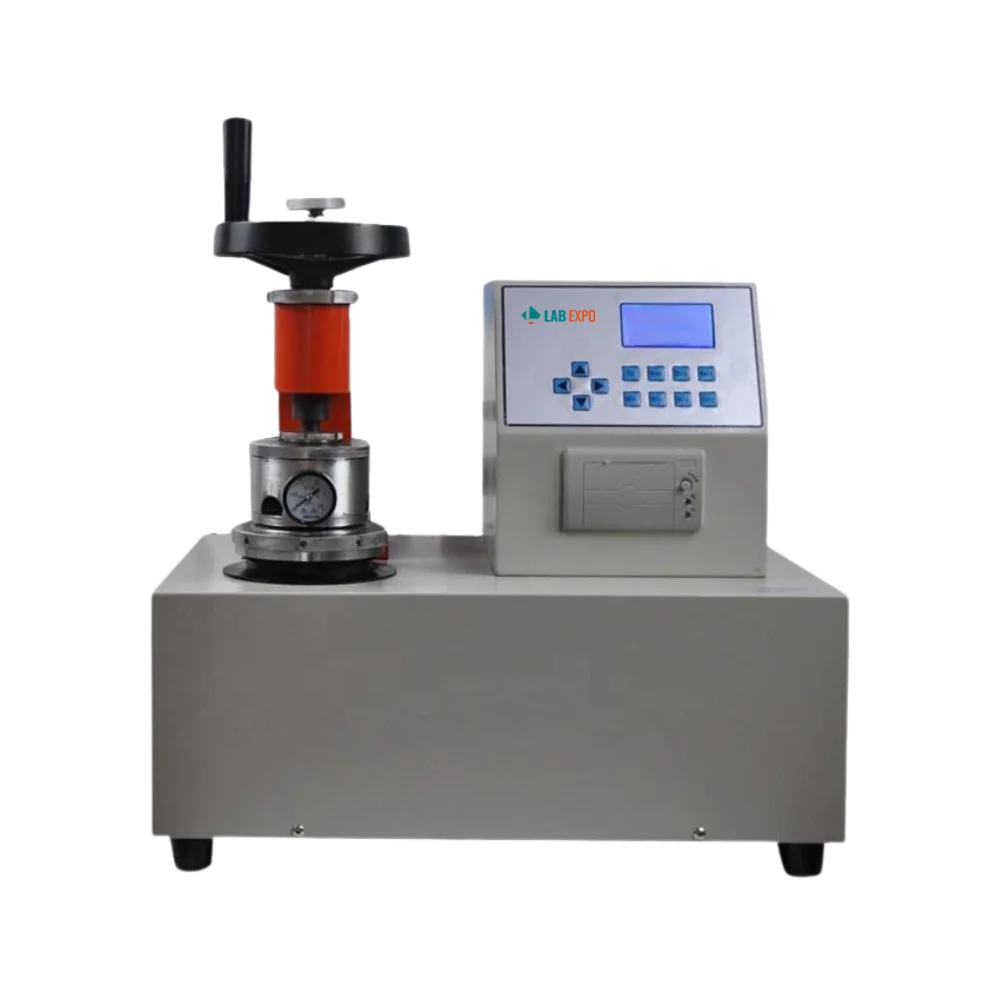

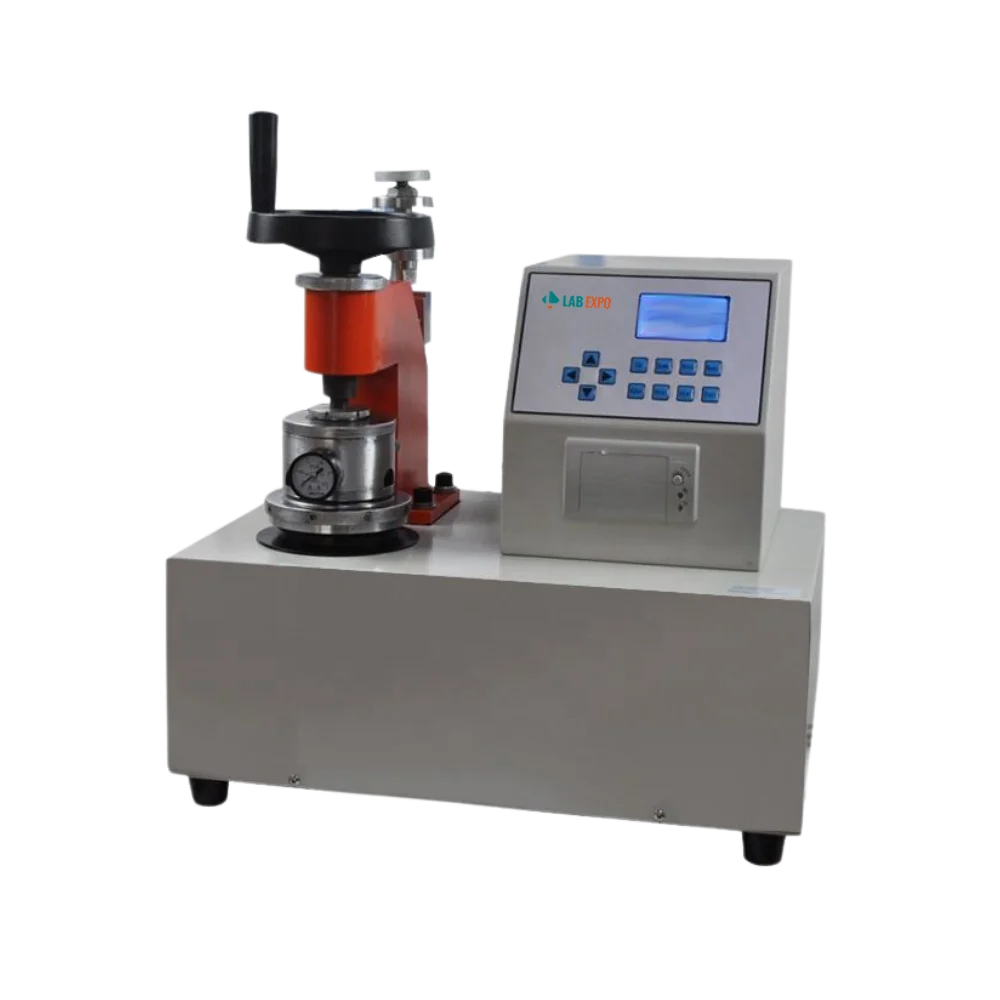

Bursting Tester 61-PPT132 offers an extensive measurement range from 50 to 1600 kPa for different burst strength requirements. Our bursting tester operates at a hydraulic transmission speed of 95 ml/min. It offers an advanced signal-transmitting pressure system to ensure precise and consistent pressure control during testing. Our tester features a clear, user-friendly LCD screen that displays real-time test data and results for easy monitoring and analysis.
Specifications
| Measure Range | 50 to 1600 kPa |
| Pressure Between Platen | >430 kPa |
| Transmit Hydraulic Speed | 95±5 ml/min |
| Diaphragm Resistance | Protruding 9mm: (20 to 40) mm |
| Continuous Testing Time | 5 s |
| Resolution | 1 kPa |
| Accuracy | ±0.5% F.S |
| Hydraulic System Tightness | On the measurement limit, one minute drop <10% Pmax |
| Upper Platen Aperture Dia. | (30.5±0.05) mm |
| Lower Platen Aperture Dia. | (33.5±0.05) mm |
| Motor Power | 90 W |
| Power Supply | 220 V ±10% 50 Hz |
| Dimensions L×W×H | 440×370×520 mm |
| Weight | 55 kg |
Features
Applications
Bursting Tester 61-PPT132 is used to measure the burst strength of materials and is widely used in the Packaging Industry, Textile and Fabric Manufacturing, Paper and Pulp Industry, Food and Beverage, and Laboratories.
Lab Expo offers Paper Testing Instruments designed for a wide range of sample sizes to test packaging materials with high precision. Our paper testing instruments are designed with a compact and portable structure, easy to transport, and ideal for testing in various environments. They offer a built-in printer that ensures efficient printing of test results for seamless documentation. Their advanced signal-transmitting pressure system offers precise control, ensuring reliable and accurate performance. Our instruments feature a user-friendly LCD to provide real-time monitoring of stiffness and burst strength values.
