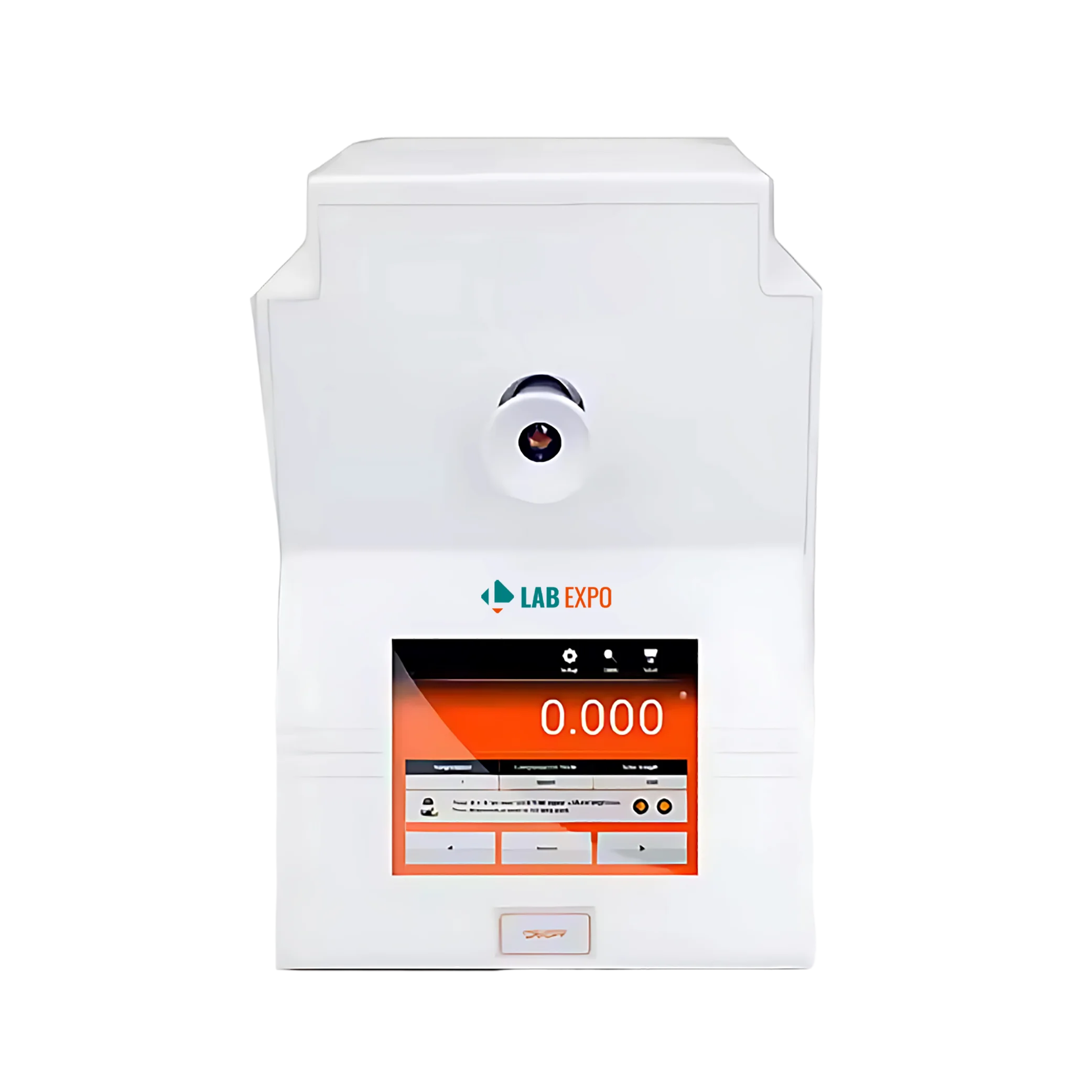

Semi automatic Polarimeter 53-PMT101

Semi-automatic polarimeter comes with 5.6 inch TFT touch screen, has one touch reset function to automatically restore the polarimeter to the original settings. The long-life LED with 589 nm filter is used instead of traditional limited hours light source. The manual zero point calibration allows users to adjust the optical field of view and eliminate the zero point error. It has four measurement options which includes optical rotation, specific rotation, concentration and international sugar content.

Specifications

Measurement mode Four modes: optical rotation, specific rotation, concentration and international sugar content
Measuring range ± 90°. ± 130° Z
Measurement accuracy ± 0.02°, ± 0.05° Z
Display/resolution 0.005°
Wavelength 589 nm
Light source LED + interference filter
Test tube length 50 / 100 / 200 mm
Temperature measurement range 0 °C to 100 °C
Temperature measurement accuracy ± 0.5 °C
Data storage 100 sets of data storage
Interface USB
Display screen 5.6 inch TFT touch screen
Dimension (L × W × H) 550 × 300 × 220 mm
Power AC 220 V, 50 Hz
Weight 7.5 kg

Features

  • Semi-automatic polarimetry
  • 5.6 inch TFT touch screen
  • 4 selectable measurement options
  • Long LED life with 589 nm filter
  • Automatic calculations of non-standard test tube measurements
  • Automatic temperature compensation ensures accurate readings
  • Built-in temperature sensor with real time sensing of the sample chamber
  • 100 sets of data storage
  • Automatic marking for time, date, sample name
  • Multi-language version selection
  • Built in text file with detailing of how to use the instrument

Applications

This polarimeter can be used in sugar industry, pharmaceuticals industry, chemical , food industry, also for detection of starch , agriculture products, amino acids etc.

Optional Accessories

Polarizing test tube 100 / 200 mm

Catalog

Semi automatic Polarimeter 53-PMT101 Catalog

Related Models Of Polarimeter

Lab Expo is the supplier of Polarimeter offering broad measuring ranges and modes for accurate analysis. These polarimeters feature a built-in light source to provide a consistent light intensity, ensuring reliable results. With temperature controls, they account for the temperature-dependent changes in optical rotations. Equipped with data storing capacity, they enable the recording and comparison of previous observations. Our Polarimeters have a touchscreen, user-friendly interface to enhance operational convenience.
