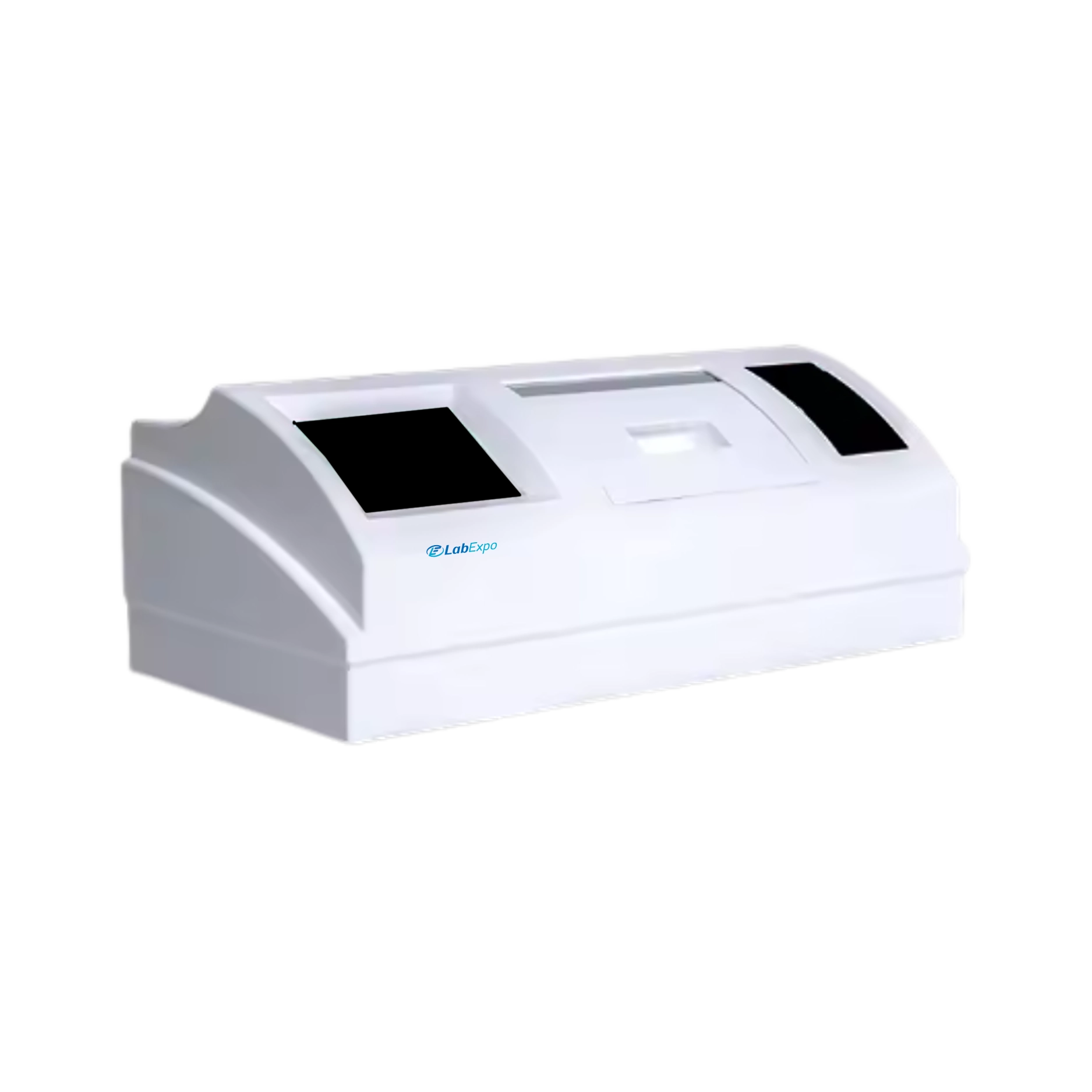

Automatic Polarimeter LE-PMT203 delivers a wide measurement range of ±90° rotation and ±259°Z sugar for accurate analysis. It features an LED cold light source that ensures stable, energy-efficient, and low-heat illumination for precise measurements. Integrated temperature control range of 15 °C to 40 °C ensures accurate and consistent operating conditions. Our Automatic Polarimeter is ideal for use in sugar, pharmaceutical, food, chemical, petroleum industries, and research laboratories.
Specifications
| Measurement Mode | Optical Rotation, Specific Rotation, Concentration and Sugar |
| Calibration | Automatic Calibration |
| Measuring Range | Optical Rotation ± 90°, Sugar ± 259 ° Z |
| Minimum Reading | 0.001°(Optical Rotation) |
| Accuracy | ± 0.01 ° (- 45 ° ≤ Optical Rotation ≤ + 45 °) ± 0.02 ° (When the Optical Rotation is Less Than - 45 ° or the Optical Rotation is More Than + 45 °) |
| Repeatability | 0.002 ° (Optical Rotation) |
| Temperature Control Range | 15 ℃ to 40 ℃ |
| Working Wavelength | 589.3nm |
| Measurable Sample min. Transmittance | 1% |
| Light Source | LED |
| Display Mode | 7-inch TFT Real Color Touch Screen |
| Interface | USB |
| Data Storage | 1000 Groups of Data |
| Power Consumption | 220V ± 22V, 50Hz ± 1Hz |
| Power Supply | 250 W |
| Weight | 28 kg |
Features
Applications
Automatic Polarimeter LE-PMT203 is widely utilized in the sugar, pharmaceutical, food, chemical, and petroleum industries, as well as in scientific research laboratories.
Lab Expo is the supplier of Polarimeter offering broad measuring ranges and modes for accurate analysis. These polarimeters feature a built-in light source to provide a consistent light intensity, ensuring reliable results. With temperature controls, they account for the temperature-dependent changes in optical rotations. Equipped with data storing capacity, they enable the recording and comparison of previous observations. Our Polarimeters have a touchscreen, user-friendly interface to enhance operational convenience.
