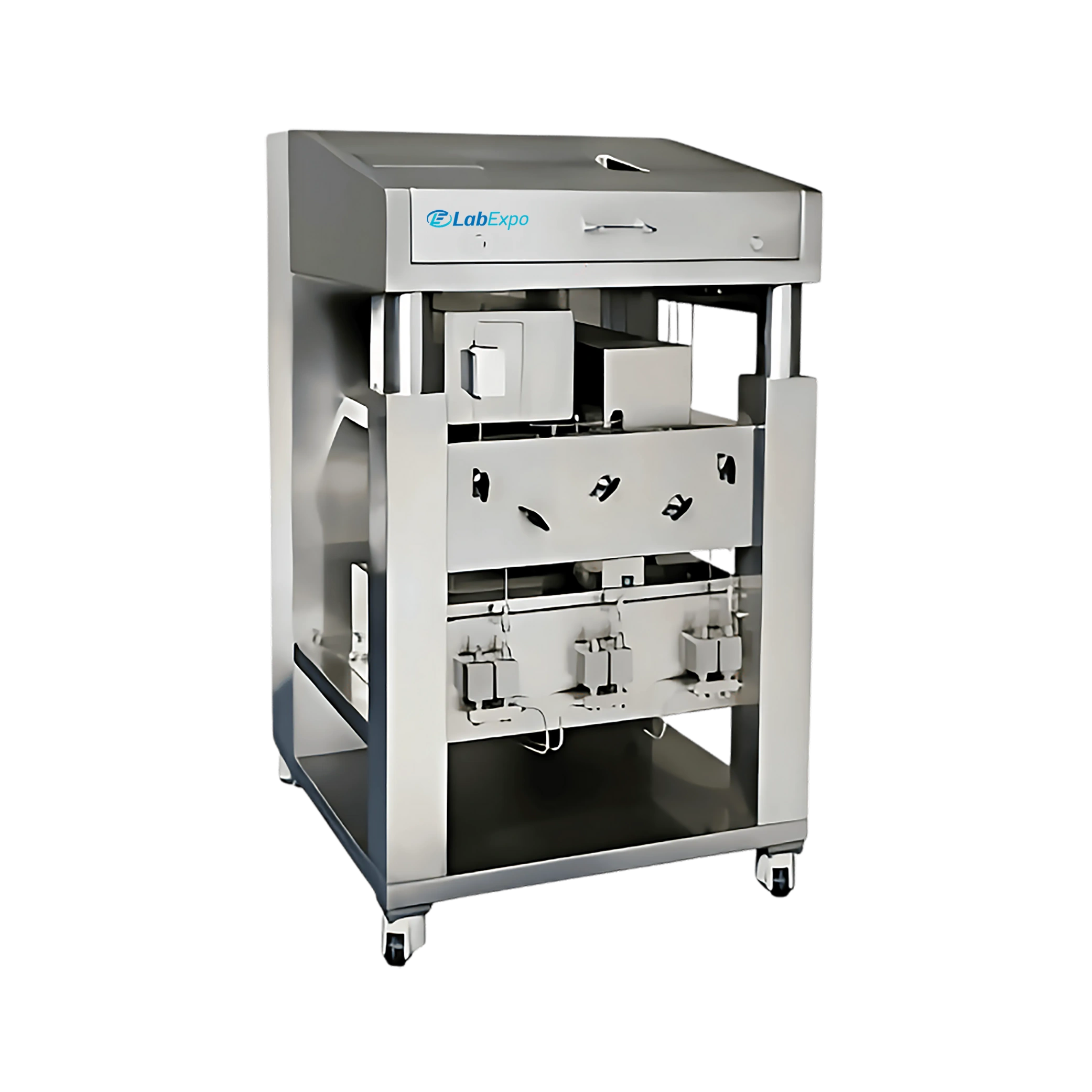

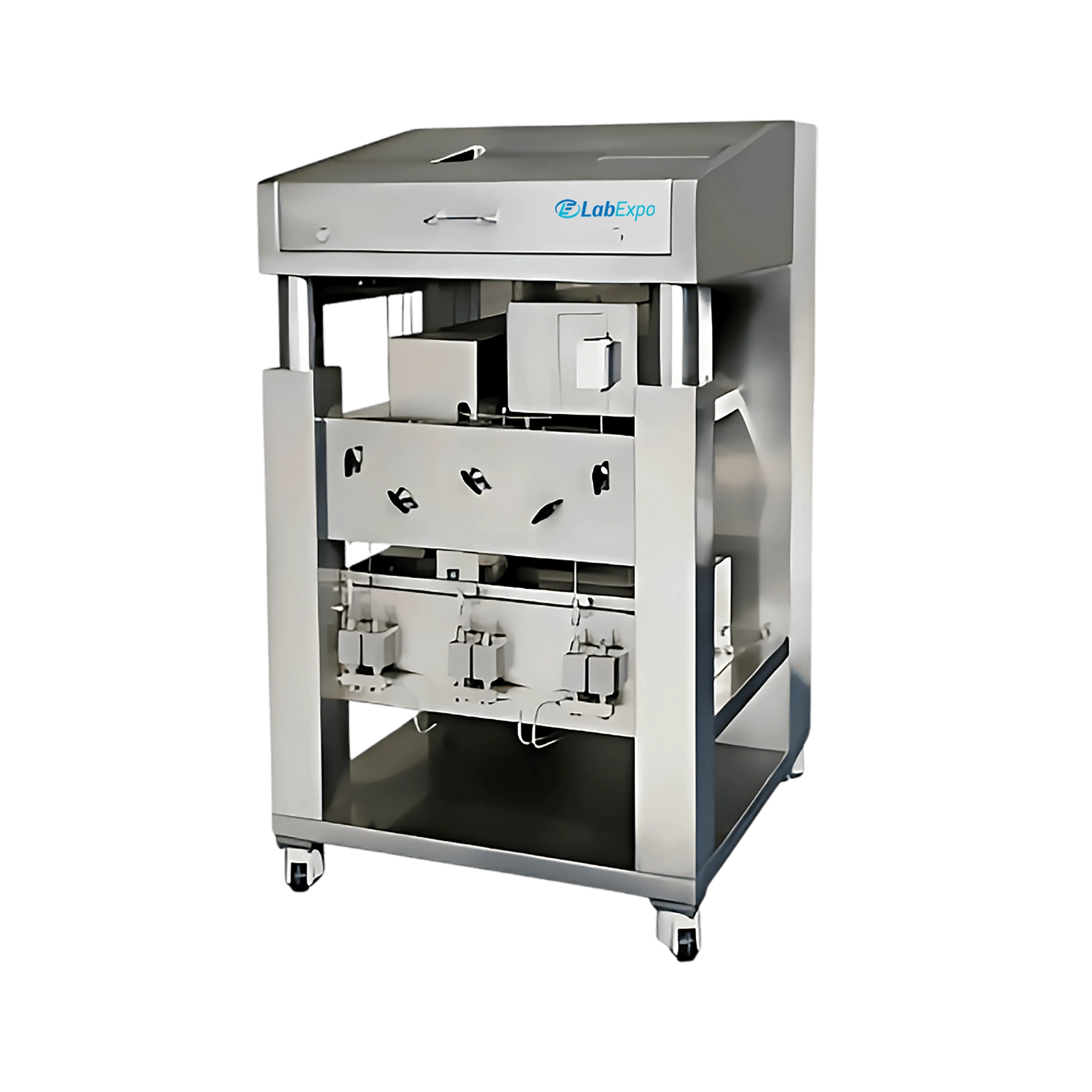

Preparative HPLC 37-PHP100

Name: Preparative HPLC 37-PHP100
Brand: Labexpo
SKU: 37-PHP100
Rating: 4.6 (704 reviews)

Preparative HPLC is equipped with 4 pump head variation and a UV or RI detector with a wavelength range of 190 to 400 nm and 400 to 800 nm. Built in multi positioned fraction valve and controlled fractionation optimizes controlled fraction collection and solvent recycling. With a column size of 10 x 1000 mm the retention, resolution and selectivity is optimized.

$39,492.00 $ 32910

Specifications

Dimension	750 x 860 x 1280 mm ( 100 ml , 250 ml , 500 ml , 1000 ml ) , 810 x 950 x 1310 mm ( 3 L )
Wetted material	316 L and PTFE
Power	< 1500 W
Mobility	With castor

Features

Solvent flow rate is 500 ml / min
Multiple chromatogram view
27 integrated programmable parameters like peak width, tangent slope etc
Compatibility for medium and low pressure application
10 points pressure calibration for pressure linearity
Auto apply of mathematical operations to chromatograms
Automated sequential commands post batch run
External pump control by panel or computer software
Addition of tools for detector controlled fraction collection and solvent recycling
Controlled fractionation with option of manual control during the run
Error alarm function for over pressure ,under pressure and leakage

Applications

Used for purification of peptides and proteins, separation of high molecular mass compounds, separation of protein mixtures, qualitative and quantitative determination of a compound, automated fraction re-analysis

Pump Specifications

Model No	SHP-A1
Pump head capacity with max pressure	100 ml ; 30 MPa
	250 ml ; 50 MPa
	500 ml ; 10 MPa
	1000 ml ; 10 MPa
	3000 ml ; 10 MPa
Pressure pulsation	1 % at 10 MPa
Flow rate accuracy	± 1 %
Flow rate reproducibility	≤ 0.5
Gradient accuracy	± 2 %
Pump inlet tube	ᴓ 4 ( 100 ml , 250 ml , 500 ml )
	ᴓ 6 ( 1000 ml )
	ᴓ 10 ( 3000 ml )
Pump outlet tube	1/8 th ( 100 ml , 250 ml , 500 ml )
	DN4 ( 1000 ml )
	DN6 ( 3000 ml )

Detector Specifications

Model No	SHP-B1
Wavelength range	190 ~ 400 nm / 400 ~ 800 nm
Wavelength accuracy	± 2 nm
Wavelength reproducibility	0.4 nm
Bandwidth	8 nm
Baseline noise ( Au )	3 x 10 -5
Baseline draft ( Au / h )	1 x 10 -4
Optical path	10 mm
Flow cell	PEEK

Fraction Valve Specifications

Model No	SHP-C1
Valve type	Ball-valve ( 8 to 16 port )
Valve head material	Stainless steel / PEEK
Capillary connection	1” / 4”
Maximum pressure stability	10 bar
Driver mode	Air or electric

Catalog

Preparative HPLC 37-PHP100 Catalog
