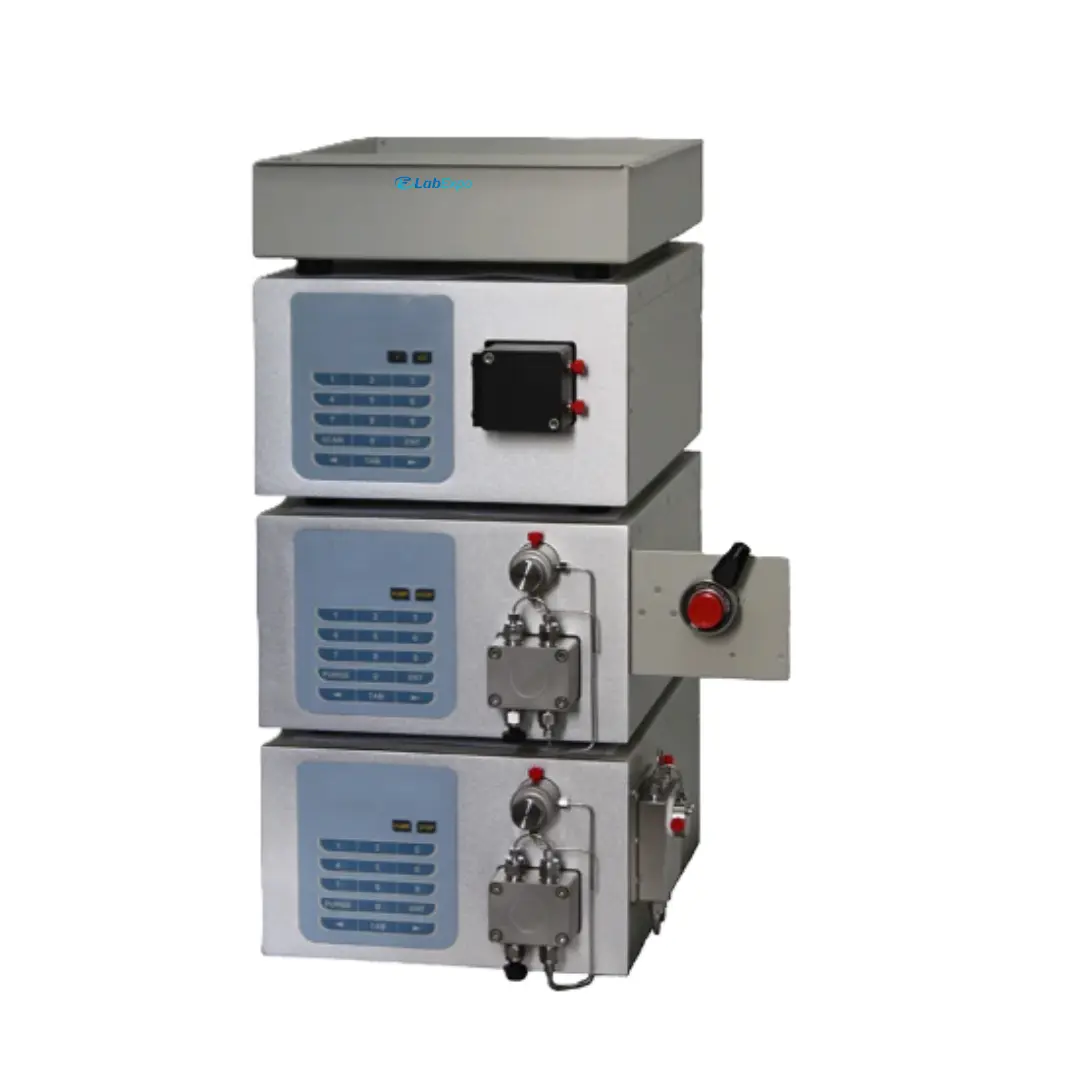

HPLC System LE-HCL101 delivers a flow rate range of 0.001 to 9.999 mL/min with 0.001 mL/min increments for accurate solvent control. It features a pressure range of 42 MPa, ensuring stable operation for precise HPLC analysis. Equipped with a deuterium lamp to provide reliable UV detection for quantitative measurements. Our HPLC System is suitable for high sensitivity, wide linearity, and stable baseline performance.
Specifications
| High Pressure Pump | Two sets of pumps |
| Flow Rate Range | 0.001 to 9.999 mL/min |
| Pressure Range | ≤ 0.5 MPa (42 MPa) |
| Flow Rate Precision | RSD ≤0.08% (1mL/min, water, room temperature) |
| Flow Rate Accuracy | ≤±0.5% (1mL/min, water, room temperature) |
| Lamp | Deuterium lamp |
| Wavelength Range | 190 to 700 nm |
| Baseline Noise | ≤8 × 10-6 AU |
| Baseline Drift | ≤1 × 10-4 AU/h |
| Detection Limit | 4 × 10-9 g/ml (Naphthalene/methyl alcohol solvent) |
| Wavelength Accuracy | ± 1 nm |
| Pump Dimension | 470 × 380 × 300 mm |
| Detector Dimension | 470 × 380 × 400 mm |
| Weight | 8 kg |
Features
Applications
HPLC System LE-HCL101 is widely used for analysing drug purity in pharmaceuticals, quantifying biomolecules in biochemistry, monitoring environmental pollutants, and performing quality control in the chemical industry.
Standard Accessories
High pressure pump
UV detector
C18 column
Static mixer
Injection valve
Software
Optional Accessories
Auto sampler
Column Oven
AD Adapter
2 channel degassers
Catalog
Lab Expo Standard HPLCs are designed with high-performance components and cold-rolled steel outer casings. These models features a multi-channel gradient pump, UV-visible detectors, and a touch-screen interface for intuitive operation. They include a high-resolution display, multi-section program control, and automated sample injection. These safety features include leak detection, overpressure protection, and integrated error diagnostics. Our HPLC models provide easy setup, real-time monitoring, and smooth operation for analytical applications.
