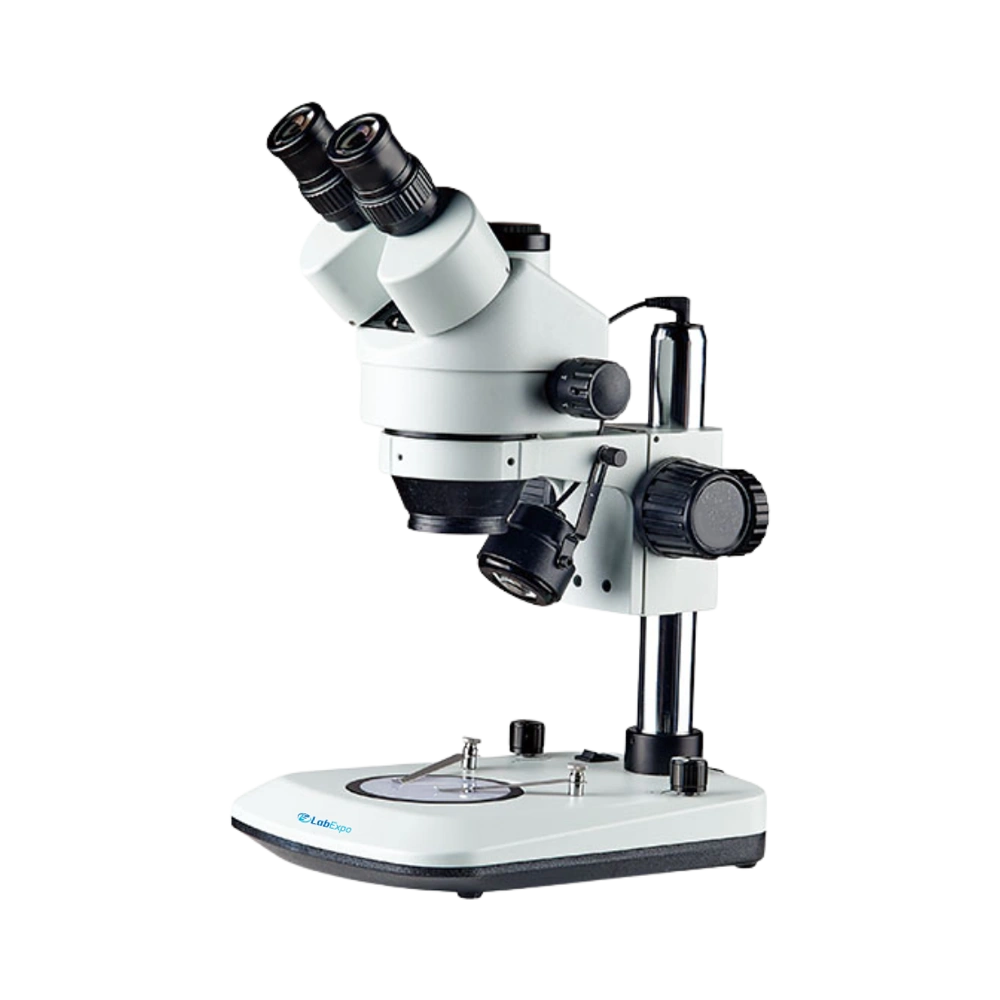

Stereo Microscope LE-SM105 has advanced viewing capabilities with a trinocular head that supports digital imaging integration. Equipped with a high-quality, fully coated optical system, it delivers sharp, high-resolution images. Integrated magnification ranging from 3.5X to 270X ensures flexibility for close examination of fine details. Incorporated super wide high eye point WF10X/20mm eyepieces provide comfortable viewing. Our Stereo Microscope is widely used in electronic industry, educational demonstration and agricultural research.
Specifications
| Head | Trinocular |
| Magnification | 7X to 45X, 3.5 to 270X with optional lens |
| Working Distance | 100mm, 30 to 287mm with optional lens |
| Eyepiece | 10X/20mm |
| Zoom Range | 0.7X to 4.5X |
| Zoom Ratio | 6.4:1 |
| Objective | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X |
| Diopter Adjustment | ±5 diopters |
| Interpupillary Distance | 54 to 76mm |
| Trinocular Body | 0%/100%, 50%/50%, 20%/80%, with a Vertical Phototube |
| Focusing Mount | A1 Focusing Bracket, Handwheel's Tightness is Adjustable, Lifting Range 50mm |
| Base | CB1 Base |
| Illumination | Fluorescent Lamp, LED Ring Light, for More Option |
| Trinocular Interface | Fit with Three-Eye Pole and CTV, It Can Be Connected with Ordinary Camera, Digital Camera, Industrial Camera and CCD |
Features
Applications
Stereo Microscope LE-SM105 is widely used in electronic industry, educational demonstration and agricultural research.
Lab Expo Stereo Microscope comes with a three-dimensional view ideal for surface observation and manipulation. These microscopes provide excellent depth of field and a broad working distance. Their optical systems deliver sharp, clear images at lower magnifications. They are available in binocular and trinocular models to suit different needs. Our Stereo Microscope is widely used in electronics, biology, and quality inspection.
