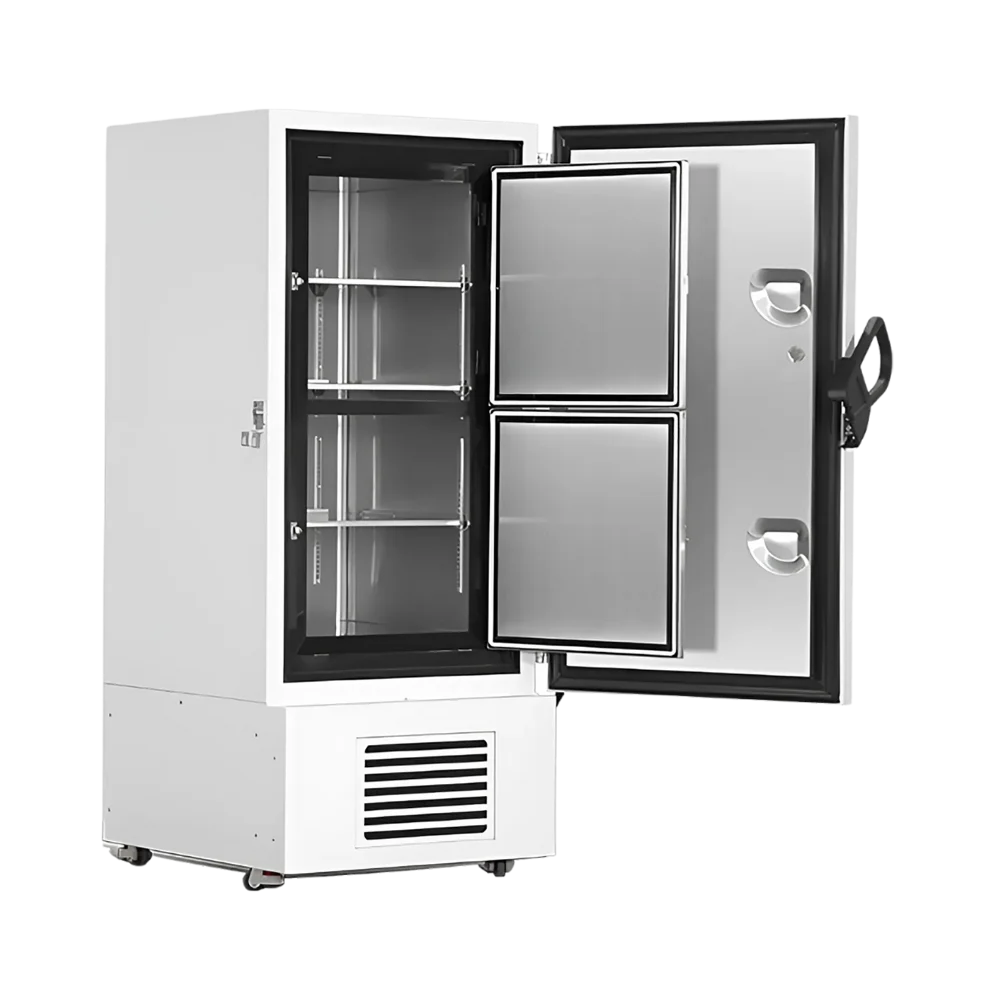

-86ºC Ultra Low Upright Freezer 20A-UPF407 is a microprocessor-controlled unit that offers capacity of 588L / 20.76 cu.ft. It employs a direct cooling method with a temperature range from -40 to -86℃. Our freezer is integrated with the auto-cascade system to maximize the cooling range and efficiency. Features an LED digital display allowing to monitor the various parameters.
Specifications
| Capacity | 588L / 20.76 cu. ft |
| Temperature Range | -40 to -86℃ |
| Ambient Temperature Range | 10 to 32℃ |
| Cooling Method | Direct cooling |
| Defrost | Manual |
| Refrigerant | R4001(mixed gas) |
| Temperature Controller | Microprocessor |
| System | Auto-cascade |
| Sensor | PTC100 |
| Frozen Racks | 16(5 × 5) |
| Internal Material | SUS304 |
| External Material | Color sprayed steel |
| Insulation | PURF+VIP |
| Display | LED Digital |
| Compressor | SECOP/2 |
| Inner Door Material | Foamed SUS304 |
| Boxes (2 Inches) | 400 |
| Samples (2ml) | 40000 |
| Access Port Diameter | 25mm |
| Remote Alarm Access | RS232/485 |
| Noise | 53dB |
| Alarms | High/low temperature Power failure Abnormal voltage Sensor error Filter screen check Thermostat failure Low battery Condenser clean High ambient temperature Door ajar |
| Power Failure Backup System | 72h |
| Current | 10.35A |
| Power Consumption | 1500W |
| Power | 16.02 kWh/24h |
| Power Supply | 220V 50Hz/60HZ |
| CBM | 2.42 |
| Interior Dimension (W × D × H) | 606 ×738 ×1310 mm |
| Exterior Dimension (W × D × H) | 872 × 1192 × 1994.5 mm |
| Packing Dimensions (W × D × H) | 970 × 11138 × 1 2185 |
| Net Weight | 303 kg |
| Gross Weight | 332 kg |
Features
Applications
Function Implementation Low-temperature labs -86℃ temperature range enables ultra-low storage High-capacity storage 588L capacity supports large sample collections Continuous operation 1500W power consumption sustains 24/7 cooling Temperature-sensitive research -40 to -86℃ temperature range allows precise control Industrial cold storage 16.02 kWh/24h power efficiency minimizes energy costs
Standard Accessories
Limiting location Clip × 2pcs Shelf × 3pcs Buckle ×12pcs Cream Shovel ×1pc Handle ×1pc Screw × 4pcs
Optional Accessories
Temperature recorder CO2 backup system
Lab Expo Ultra Low Upright Freezers support long-term ultralow storage where precise temperature control and organized vertical access are required for critical samples. This ultra low temperature upright freezer operates with microprocessor-regulated cooling to maintain stable setpoints at ultralow ranges. Digital monitoring manages alarms and recording, while secure locking, backup protection, and durable build ensure controlled operation and repeatable preservation performance for continuous laboratory and clinical use.
