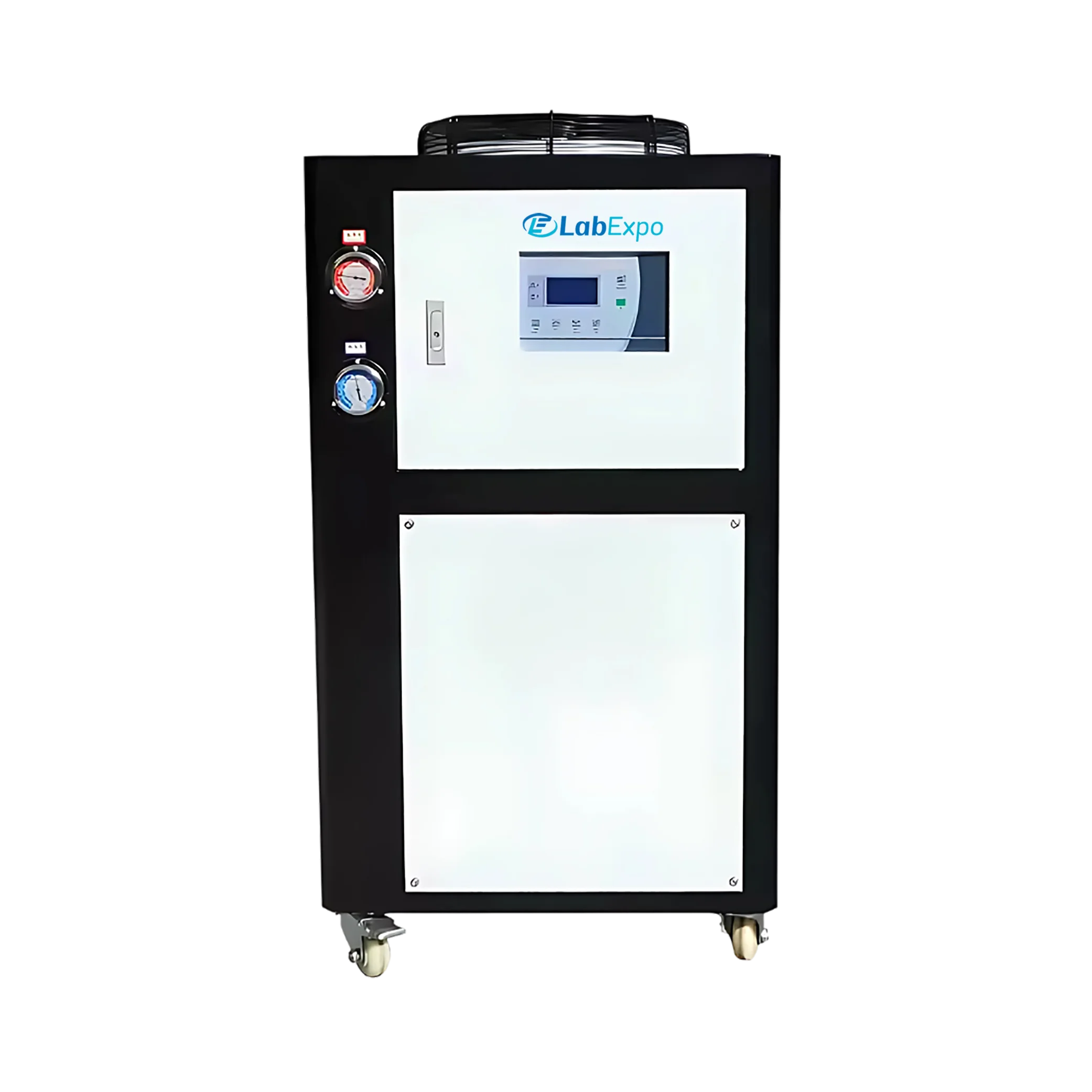

Water Chiller LE-WCR119 offers a user-friendly control panel with a clear display, ensuring effortless operation and precise monitoring. It supports both air-cooled and water-cooled modes, providing installation options. Built with automatic fault alarms and a reset system, it ensures safe, reliable, and uninterrupted performance. Our Chiller also supports local and remote control for flexible operation.
Specifications
| Evaporating Temperature | 7 to 12°C |
| Condensing Temperature | 35°C |
| Cooling Capacity | 6000 Watt |
| Protection - High/Low Pressure | Standard |
| Protection - Overload | Standard |
| Protection - Phase/Voltage | Standard |
| Protection - Water Flow | Standard |
| Compressor Type | Rotary |
| Capacity Control | 0% to 100% |
| Compressor Input Power | 2200 Watt |
| Compressor Quantity | 1 Unit |
| Condenser Type | Shell & Tube |
| Inlet Water Temperature | ≤ 35°C (Condenser) |
| Outlet Water Temperature | 40°C (Condenser) |
| Evaporator Type | Coil Heat Exchanger |
| Evaporator Pipe Diameter | DN32 |
| Inlet Water Temperature | 12°C (Evaporator) |
| Outlet Water Temperature | 7°C (Evaporator) |
| Evaporator Flow Rate | 7 T/H |
| Evaporator Pressure Drop | 22 kPa |
| Refrigerant Type | R410A |
| Refrigerant Charge Volume | 1.2 kg |
| Throttling Method | Thermal Expansion Valve |
| Coolant | Municipal Tap Water |
| Noise Level | 82 dB(A) |
| Operating Current | 5A |
| Power Consumption | 2200 Watt |
| Power Supply | 380V Three-phase power |
| Dimensions | 1000 × 700 × 1000 mm |
| Packaging Dimensions | 1000 × 780 × 1310 mm |
| Net Weight | 70 Kg |
| Gross Weight | 105 Kg |
Features
Applications
Function Implementation Industrial temperature control 6000 W capacity maintains defined process cooling range Food and beverage processing 7 to 12 C evaporating control supports stable production temperature Medical and laboratory cooling Coil heat exchanger ensures regulated coolant circulation Energy and power systems 0% to 100% capacity control adapts to load variation Process safety management Built-in protections regulate safe and continuous operation
Catalog
Lab Expo Water Chiller supports continuous cooling operations where stable water temperature and low-noise performance are required for laboratory and industrial equipment. This water chiller system operates with compressor-driven cooling and adjustable temperature and flow control to maintain consistent thermal conditions. Stainless steel tanks and pumps support corrosion resistance, while digital monitoring, automated control, and integrated safety alarms ensure controlled, repeatable cooling performance during daily operation.
