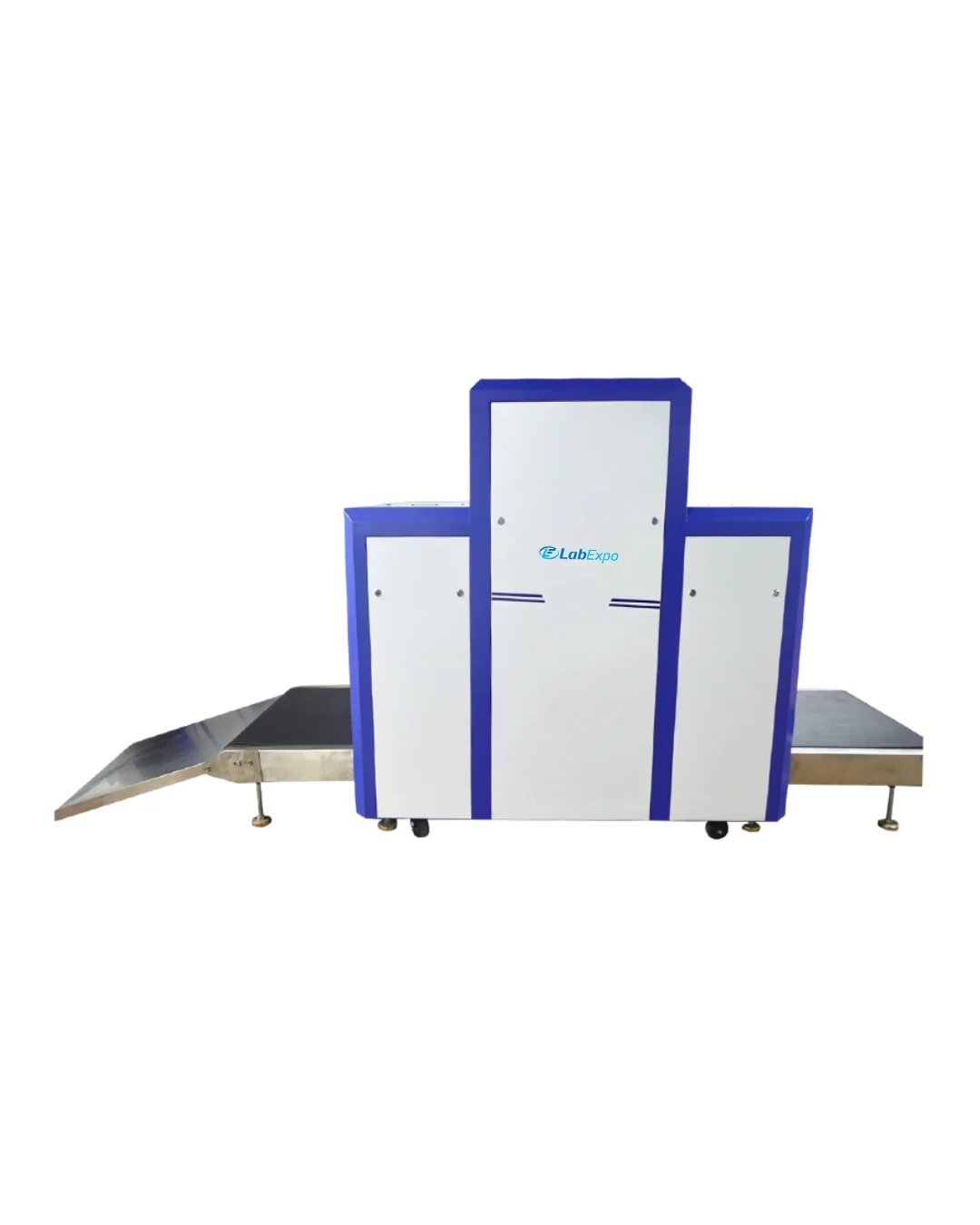

X-Ray Baggage Scanner LE-XBS409 is equipped with a 1000 × 800 mm tunnel size for larger baggage accommodation. provides flexible system configurations with detailed user and alarm settings. Built-in edge enhancement engine and real-time processing system ensures precise detection. Our X-Ray Baggage Scanner ensures streamlined and secure inspection across all major screening environments.
Specifications
| Conveyor Speed | 0.22 m/s |
| Conveyor Maximum Load | 250 kg |
| Wire Resolution | AWG32 |
| Penetration | 34 mm Steel |
| X-Ray Sensor | L-Shaped Photo Diode Array |
| X-Ray Dose Per Inspection | < 1.5 µGy/kg |
| X-Ray Leakage | < 1µGy /h |
| Film Safety | ISO1600 |
| Operation Temperature | 0℃ to 45℃ |
| Operation Humidity | 20 to 95% |
| Storage Temperature | -20℃ to 60℃ |
| Storage Humidity | 20 to 95% |
| Image Storage | 20000 Images |
| Image Resolution | 1024 × 768 pixels |
| Monitor | 19-inch LCD screen |
| Power Consumption | 300 W |
| Power Supply | 220V, 50±3Hz |
| Tunnel Dimension | 1000 × 800 mm |
| Net Weight | 730 kg |
| Gross Weight | 920 kg |
Features
Applications
X-Ray Baggage Scanner LE-XBS409 is used in VIP terminals, embassy entries, summit venues, major expos, military bases and restricted public service zones.
Lab Expo X-Ray Baggage Scanner delivers consistent image clarity through advanced imaging sensors and enhanced zoom processing. They are designed to detect concealed threats with precision, minimizing false alarms even under high throughput. These are optimized for non-intrusive inspection while maintaining high safety standards for operators and travellers. Our X-Ray Baggage Scanner supports critical security needs in airports, subways and private facilities with maximum efficiency and intelligent control.
