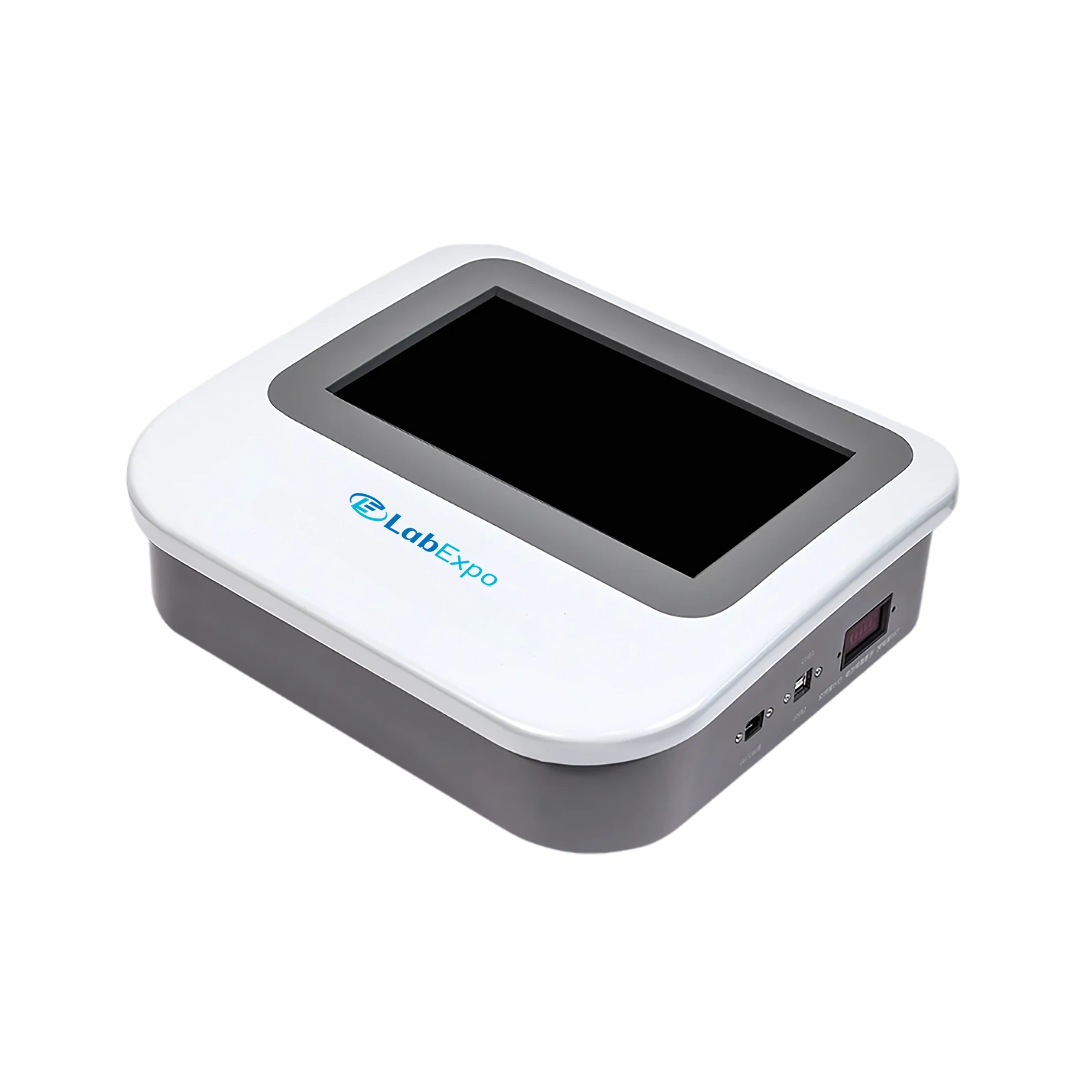

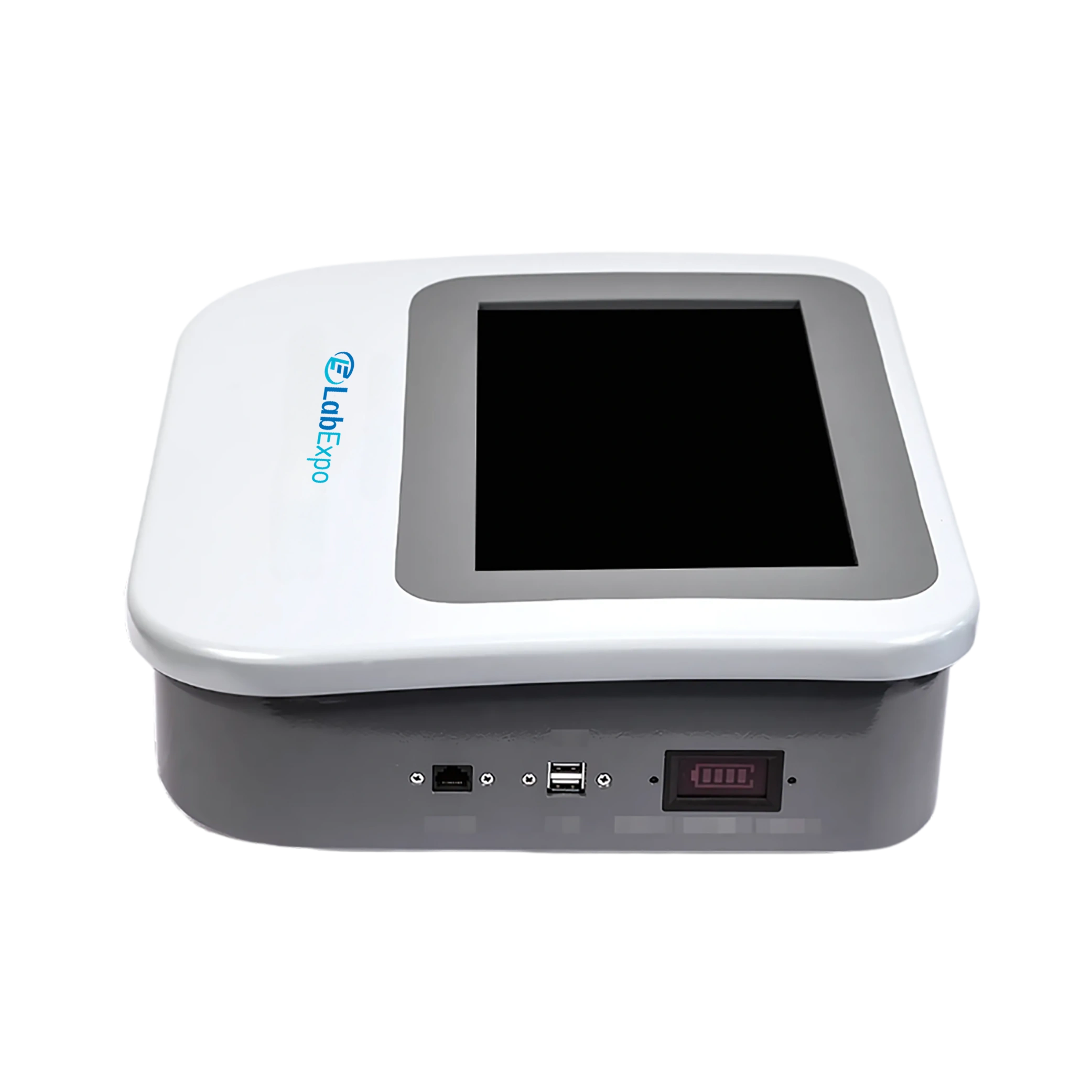

Arteriosclerosis Detector LE-AD102 delivers precise pulse rate measurements within a range of 40 to 199 BPM. It offers synchronized pressurization of limbs to ensure accurate and simultaneous measurements. Equipped with a 5200mAh lithium battery, it provides long-lasting, reliable operation. Built-in portable structural design allows for easy movement. Our Arteriosclerosis Detector is suitable for early diagnosis of arteriosclerosis and cardiovascular diseases.
Specifications
| Measurement Parameters | BaPWV (Brachial-Ankle Pulse Wave Velocity) ABI (Ankle Brachial Index) BAI (Brachial-Ankle Index) HR (Heart Rate) PVR (Pulse Volume Recording) SBP (Systolic Blood Pressure) DBP (Diastolic Blood Pressure) MAP (Mean Blood Pressure) PP(Pulse Pressure) |
| Measurement Method | Blood Pressure Measurement using Oscillography |
| Pressurization Method | Synchronized Pressurization of Limbs |
| Measurement Location | Limbs (Ankles, Brachial Arms) |
| Arm Circumference Range | 200 to 380 mm |
| Lower Limb Width Range | 160 to 330 mm |
| Blood Pressure Measurement Range | 0 to 260 mmHg |
| Pulse Rate Measurement Range | 40 to 199 BPM |
| Blood Pressure Module Accuracy | ±3 mmHg |
| Measurement Accuracy | <0.4 kPa(±3 mmHg) |
| Repeatability | <0.533kPa(4 mmHg) |
| Number of Blood Pressure Modules | 4 |
| Number of Cuff Cycles | 8000 Inflation and Deflation Cycles |
| Display | 12.1-inch HD LCD Screen |
| Battery Capacity | 5200 mAh Lithium Battery |
| Battery Working Time | Up to 3 Hours |
| Power Supply | 115VA, Voltage 220V |
| Dimension | 450 × 410 × 120 mm |
| Weight | 7.8 Kg |
Features
Applications
Arteriosclerosis Detector LE-AD102 is ideal for clinics and remote settings, providing non-invasive assessments of arterial stiffness, identifying blockages in lower limb arteries, screening for cardiovascular risks, and tracking the effectiveness of treatments.
Standard Accessories
Industrial control computer system- 1
High definition color LED display- 1
Logictech wireless mouth- 1
Logictech wireless keyboard- 1
Cuff extension cable- 1
Limbs Cuff- 1
PSB(3C) power cable- 1
1: What makes the LE-AD102 suitable for early diagnosis?
This device combines PWV and ABI readings with synchronized pressurization, enabling early identification of arterial stiffness and peripheral vascular conditions with clinical precision.
2: How does synchronized limb pressurization improve accuracy?
These synchronized cuffs ensure that measurements from all limbs are captured at the same moment, reducing external variability and increasing diagnostic consistency.
3: Can the LE-AD102 be used in mobile clinics or field screenings?
They are designed with a compact, portable structure and built-in battery, allowing reliable use in remote or mobile healthcare environments for on-the-go cardiovascular screening.
4: How user-friendly is the interface for first-time operators?
The 12.1-inch HD display offers intuitive navigation, and bundled wireless keyboard and mouse make interaction simple, making it accessible even for staff with minimal training.
5: What parameters can healthcare providers monitor using this detector?
Our detector delivers readings for heart rate, systolic and diastolic blood pressure, mean arterial pressure, and pulse volume, providing a comprehensive vascular health profile.
6: What is an Arteriosclerosis Detector used for?
An Arteriosclerosis Detector is used to evaluate vascular health by assessing the stiffness and elasticity of arteries. It helps detect early signs of arteriosclerosis in a non-invasive manner.
7: How does the Arteriosclerosis Detector provide quick vascular assessments?
The device utilizes automated measurement protocols and advanced sensors to capture arterial data within minutes, enabling fast yet accurate assessment of vascular health.
8: How does the user-friendly interface simplify operation?
The interface includes intuitive touchscreens, simple menu navigation, and guided prompts that make operation easy even for first-time users or non-specialists.
9: Can the device be used in point-of-care environments?
Yes, its portability and ease of use make it ideal for point-of-care testing, where fast and reliable assessments are needed without a complex setup.
10: What makes the cuffs on your Arteriosclerosis Detector durable?
The cuffs are made from high-quality, medical-grade materials that resist wear and tear, ensuring long-term use even under frequent or intensive conditions.
Lab Expo Arteriosclerosis Detector offers a reliable solution for non-invasive vascular assessment. They help in assessing vascular health quickly and efficiently. Their user-friendly interface and portable design make them easy to operate. These detectors are suitable for use in clinics, hospitals, and health centers. Our Arteriosclerosis Detector features durable cuffs and reliable performance for long-term operation.
