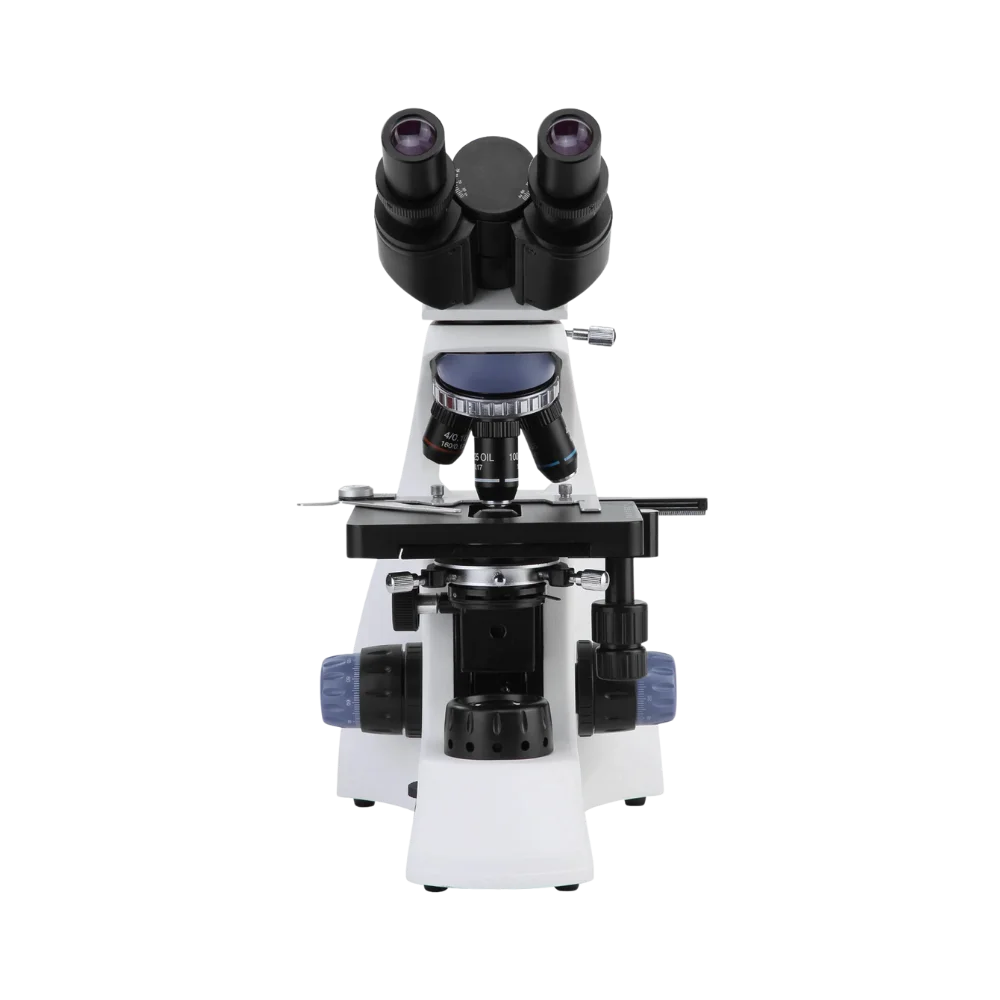

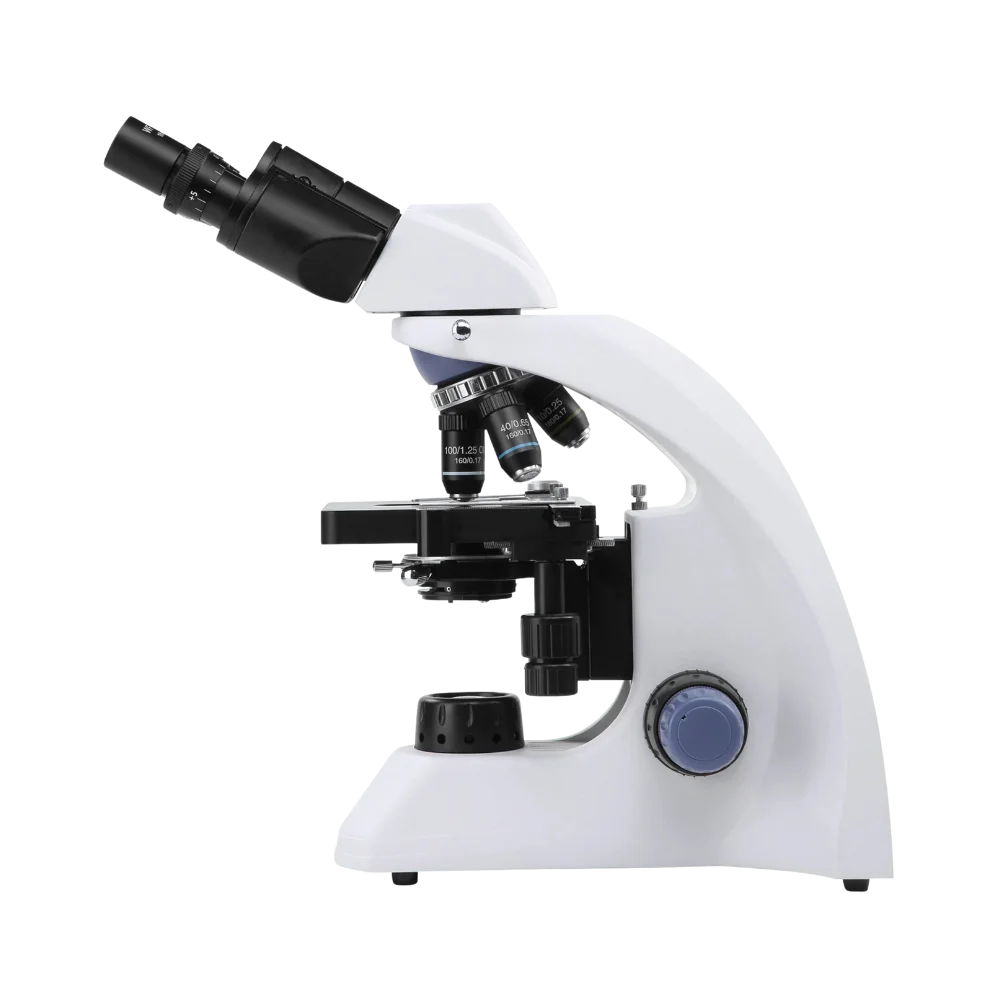

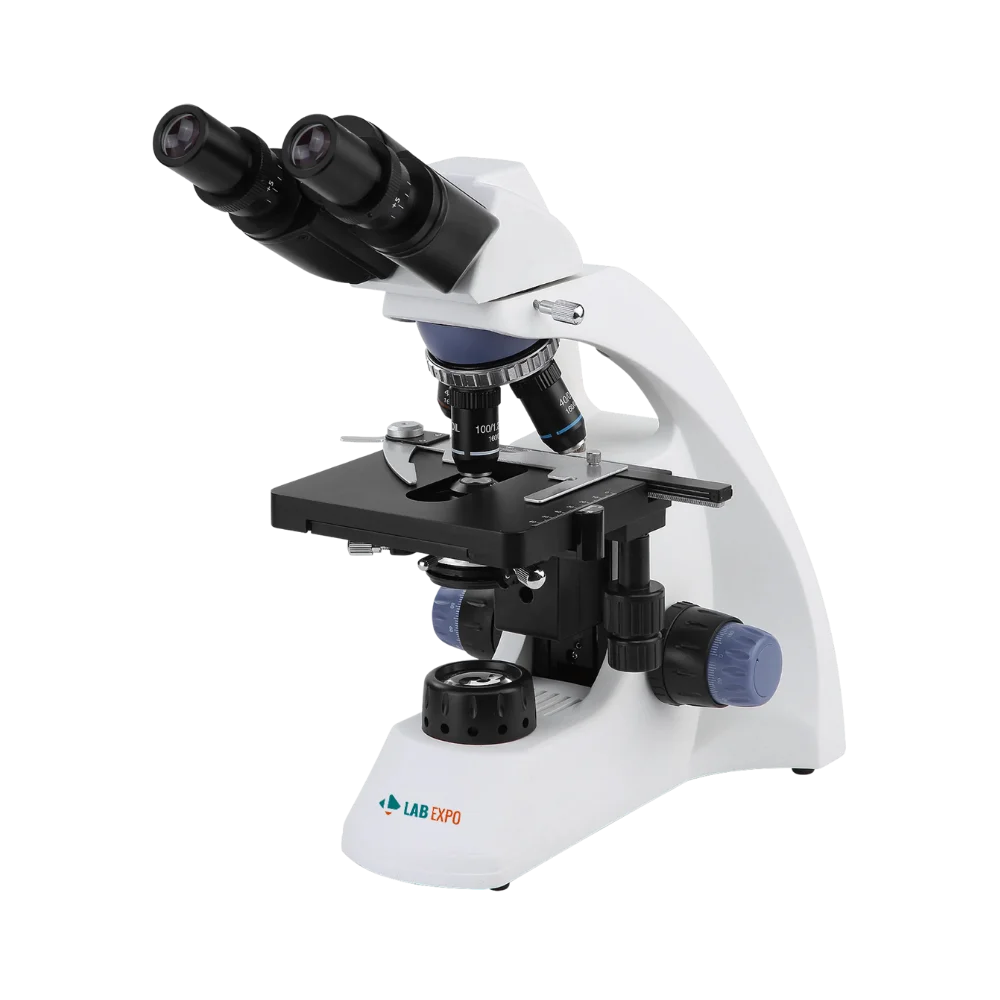

Educational Microscope 43-EMS100 comes with siedentopf type binocular viewing head. With the help of coarse and fine focusing adjustment, LED source of illumination, it is possible to obtain clear and sharp images of the specimen. It is specially designed for examination & demonstration purpose. It can be used for advanced applications in schools and colleges.
Specifications
| Optical System | Finite Optical System |
| Viewing head | Siedentopf binocular head, inclined at 30° eyepiece tube rotation 360° |
| Nosepiece | Quadruple nosepiece |
| Eyepiece | Wide field eyepiece WF 10X / 18 mm |
| Objective | Achromatic objective 4x, 10x, 40x(s), 100x(s,oil) |
| Stage | Double layer mechanical stage: 142 × 132 mm Moving range: 75 × 50 mm |
| Focusing | Coaxial coarse & fine adjustment, fine division 0.002 mm, coarse stroke 36 mm |
| Condenser | Abbe N.A. 1.2 condenser with iris diaphragm with filter |
| Illumination | 3 W / LED brightness adjustable |
| Dimension | 340 × 255 × 490 mm |
| Net weight | 5 kg |
| Gross weight | 6 kg |
Features
Applications
Educational Microscope has applications in bacteriology, biology, research industries, school and colleges.
Optional Accessories
Siedentopf trinocular head, inclined at 30º
eyepiece tube rotation 360º
Quadruple nosepiece
Wide field eyepiece WF16X/13 mm
Wide field eyepiece WF20X/11 mm
3W/LED adjustment, rechargeable battery
Plan achromatic objectives 4x, 10x, 40x(s), 100x(s,oil)
Lab Expo educational microscopes use a Siedentop binocular head for comfortable viewing. They have coarse and fine focusing and a wide field eyepiece. They have LED lighting for improved visibility. They include a triple turning nosepiece for flexible magnification. They employ achromatic objectives to ensure correct image quality. They are perfect for exams and demonstrations in schools and colleges. Our educational microscopes are reliable and user-friendly equipment for successful teaching and advanced uses.
