Electrochemical Testing Machine LE-ETM101 offers a 5 kN load capacity, upholding uniform performance and dependable testing results. It features testing load accuracy ±0.5%, delivering superior precision for high-standard electrochemical measurements. Built-in with deformation resolution to ensure smooth and stable operation. Our Electrochemical Testing Machine is suitable for strength, durability, and performance assessment of plastics and composites.
Specifications
| Load Capacity | 5 kN |
| Calibration Standard | Class0.5 |
| Testing Load Accuracy | ±0.5% |
| Testing Load Range | 0.4 % to 100% FS |
| Load Resolution | 1/500,000FS |
| Deformation Measuring Range | 0.2 % to 100 % FS |
| Deformation Accuracy | ≤±0.5% |
| Deformation Resolution | 1/±500000FS of max deformation |
| Test Control Mode | Three closed loop control, stress, strain and displacement |
| Position Accuracy | Within ±0.5 %of the value |
| Displacement Resolution | 0.01 mm |
| Crosshead Speed Range | 0.001-500 mm/min |
| Crosshead Speed Accuracy | ≤±0.2％ |
| Constant Force Control Range | 0.001％ to 5％FS/s |
| Constant Force Control Accuracy | ±2% at rate <0.05% FS/s |
| Constant Deformation Control Range | 0.005 to 5%FS/s |
| Constant Deformation Control Accuracy | ±2% at rate <0.05% FS/s |
| Crosshead Travel | 800 mm |
| Max. Tensile Testing Space | 600 mm |
| Max. Compression Testing Space | 600 mm |
| Compression Platen | Ф100 mm |
| Power supply | AC220V±10%,50 Hz/60 Hz |
| Dimensions | 520 × 400 × 1340 mm |
| Weight | 110 kg |
Features
Applications
Our Electrochemical Testing Machine LE-ETM101 is suitable for tensile, compressive, flexural, and shear testing of plastics, composites, and geotextiles, as well as for durability and performance assessment in research and industry.
Standard Accessories
Electronic universal testing machine host
Stepper motor system
Rubber shock-absorbing Pad
Handheld Unit controller
Positioning Ruler
S type load cell
Corrugated Tensile grip
Compression test grip
Control system
Test Software
Computer and printer
Optional Accessories
Bottom cabinet
Long travel extensometer

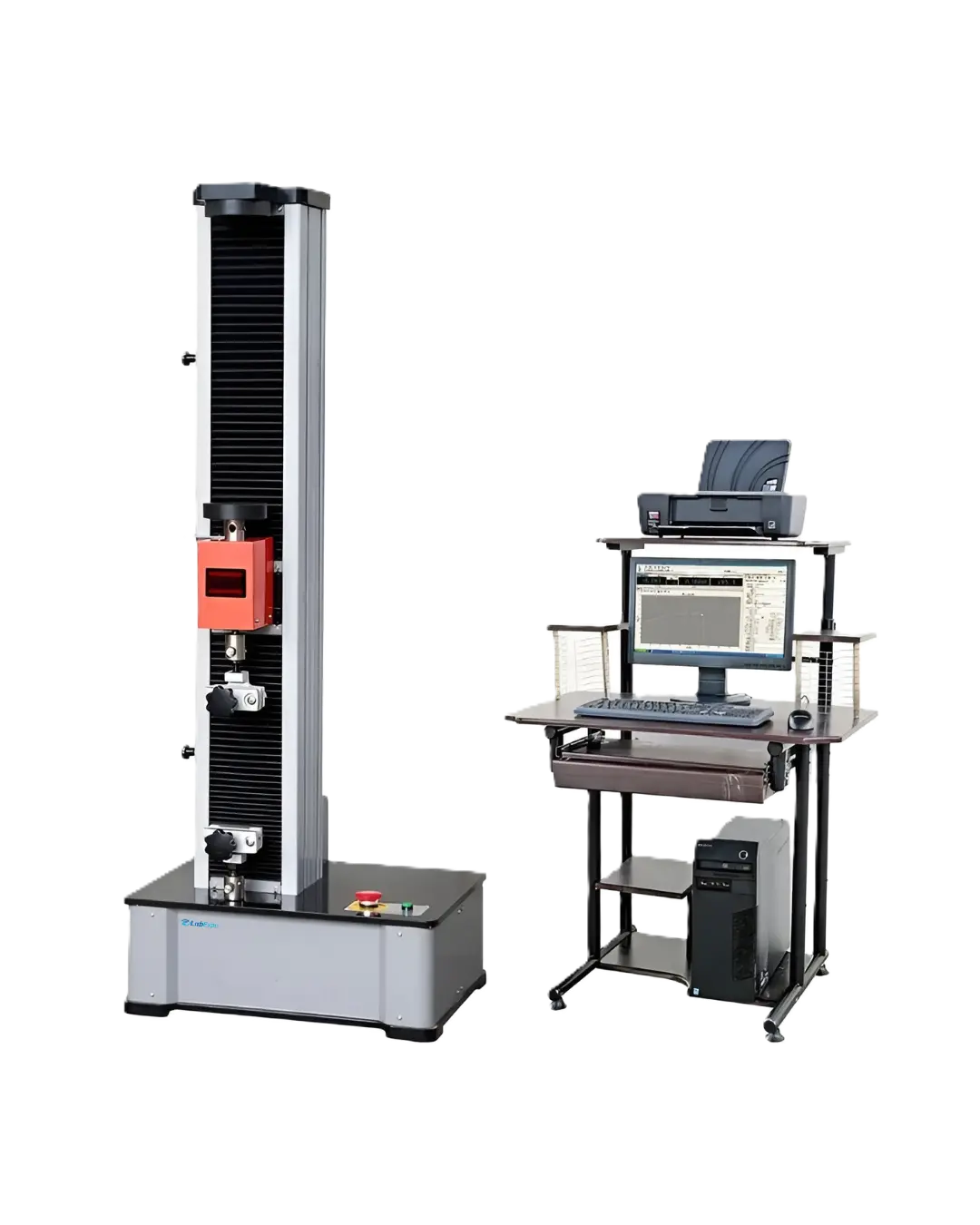

Lab Expo Electromechanical Universal Testing Machine have different load capacities from small tests to larger samples. They are equipped with high-precision load cells and extensometers, ensuring accurate measurements. They have advanced software for data acquisition and test management, enhancing its functionality. These provide precise control over test speed and force, ensuring consistent and accurate results. Our testing machine has automatic data analysis providing real-time results.
