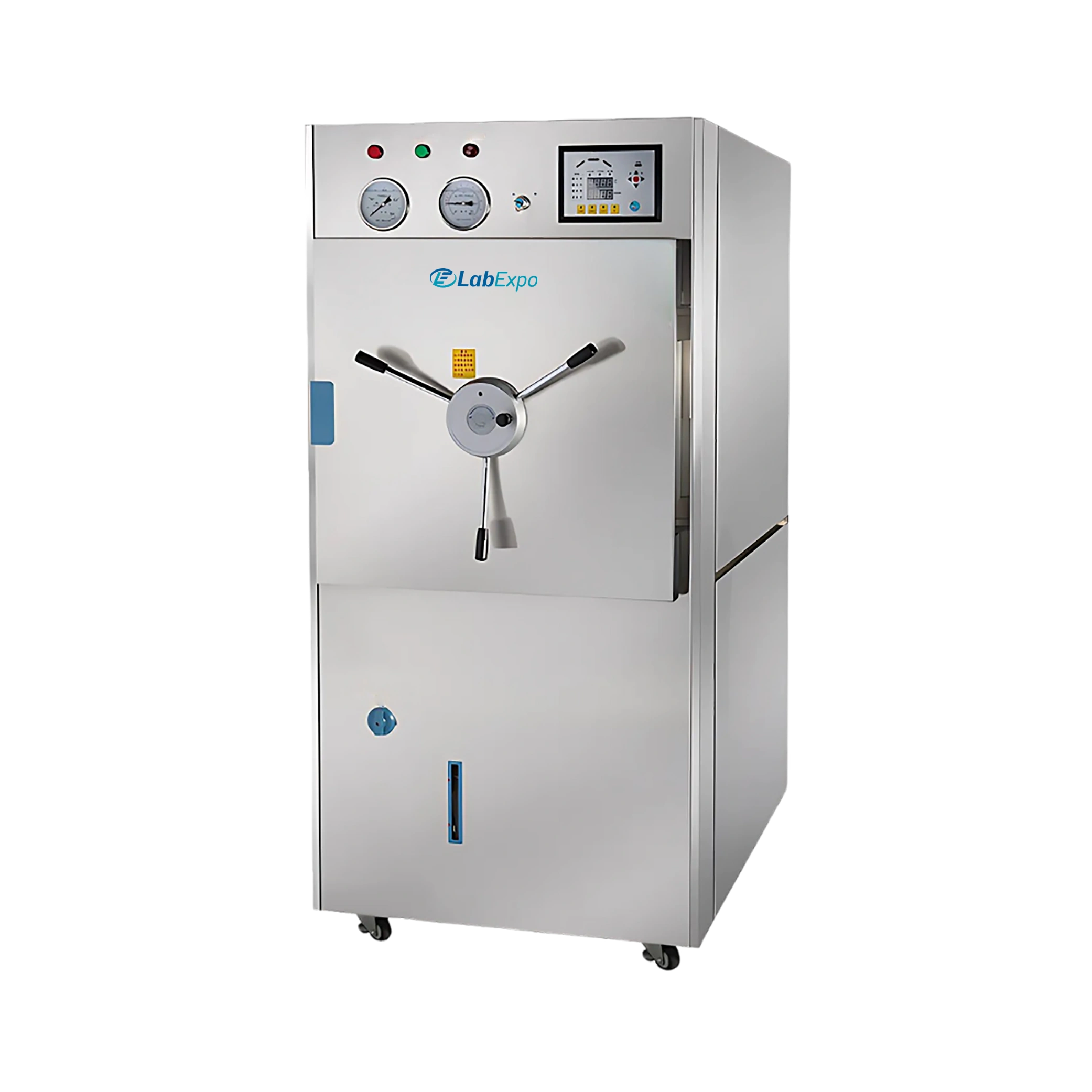

Horizontal Autoclave LE-HA101 delivers a 200-liter capacity for efficient sterilization. It features an interlock device to ensure safe operation. Built-in digital display screen and working indicator lights show the current running state clearly. Incorporated 8 rotary extendable sticks ensure secure sealing. Our Horizontal Autoclave is suitable for sterilization use in laboratories, research centers, and other related facilities.
Specifications
| Capacity | 200 L |
| Configuration | Semi-Automatic |
| Temperature Range | 50 to 134°C |
| Working Pressure | 0.217MPa |
| Time Range | 0 to 99h |
| Relative Humidity | 10% to 85% |
| Chamber Diameter | 500 × 1120 mm |
| Chamber Thickness | 3.0 mm |
| Display System | Digital LED |
| Power Consumption | 9000W |
| Power Supply | 380V |
| Dimension | 1550 × 720 × 1640 mm |
| Packaging Dimension | 1640 × 830 × 1800 mm |
| Gross Weight | 300 Kg |
Features
Applications
Function Implementation Instrument Sterilization Reusable laboratory, medical, and veterinary instruments Media Sterilization Culture media and laboratory liquids Material Processing Heat- and pressure-resistant laboratory materials Sample Container Treatment Environmental and research sample vessels
1: Which control system ensures accurate parameter settings?
It features an LED digital control system for precise temperature and time adjustments.
2: Which capacity does the Horizontal Autoclave LE-HA101 offer for sterilization tasks?
They provides a 200-liter chamber to handle medium- to large-volume loads efficiently.
3: Which safety feature prevents accidental operation during a cycle?
A built-in interlock device ensures the unit cannot be opened while under pressure.
4: Which functions help manage water levels automatically?
These autoclave has both automatic water intake and automatic water refill capabilities.
5: Which industries can benefit from using the LE-HA101?
Our Autoclave is suitable for laboratories, hospitals, pharmaceutical industries, educational institutions, veterinary clinics, and environmental testing centers.
6: Why is high-grade stainless steel used in Horizontal Autoclaves?
High-grade stainless steel is used for the chamber and internal components to ensure long-term durability, high corrosion resistance and compliance with hygiene standards in sterile environments.
7: What are the benefits of digital controls in Horizontal Autoclaves?
Digital controls provide accurate readings, consistent performance, real-time monitoring, error alerts and the ability to store and repeat sterilization cycles, improving efficiency and traceability.
8: Can users program custom sterilization cycles?
Most horizontal autoclaves allow users to program and save custom sterilization parameters, adapting the process to different types of instruments or materials.
9: What does fully automated operation mean in your autoclaves?
Fully automated operation means the autoclave manages the entire sterilization cycle filling, heating, sterilizing, pressure release and drying without manual intervention.
10: How is maintenance simplified in a fully automated autoclave?
The system performs internal checks, alerts users for maintenance schedules and reduces manual handling thus extending equipment lifespan and minimizing upkeep requirements.
Lab Expo Horizontal Autoclaves are applied in high-capacity sterilization workflows where large instrument loads require uniform steam distribution and controlled cycle execution. Each horizontal steam sterilizer operates using pressurized steam and is constructed from stainless steel to support continuous operation and corrosion resistance. Digital control systems regulate temperature, pressure, and cycle parameters, while integrated safety mechanisms support automated operation and controlled processing of large-volume loads.
