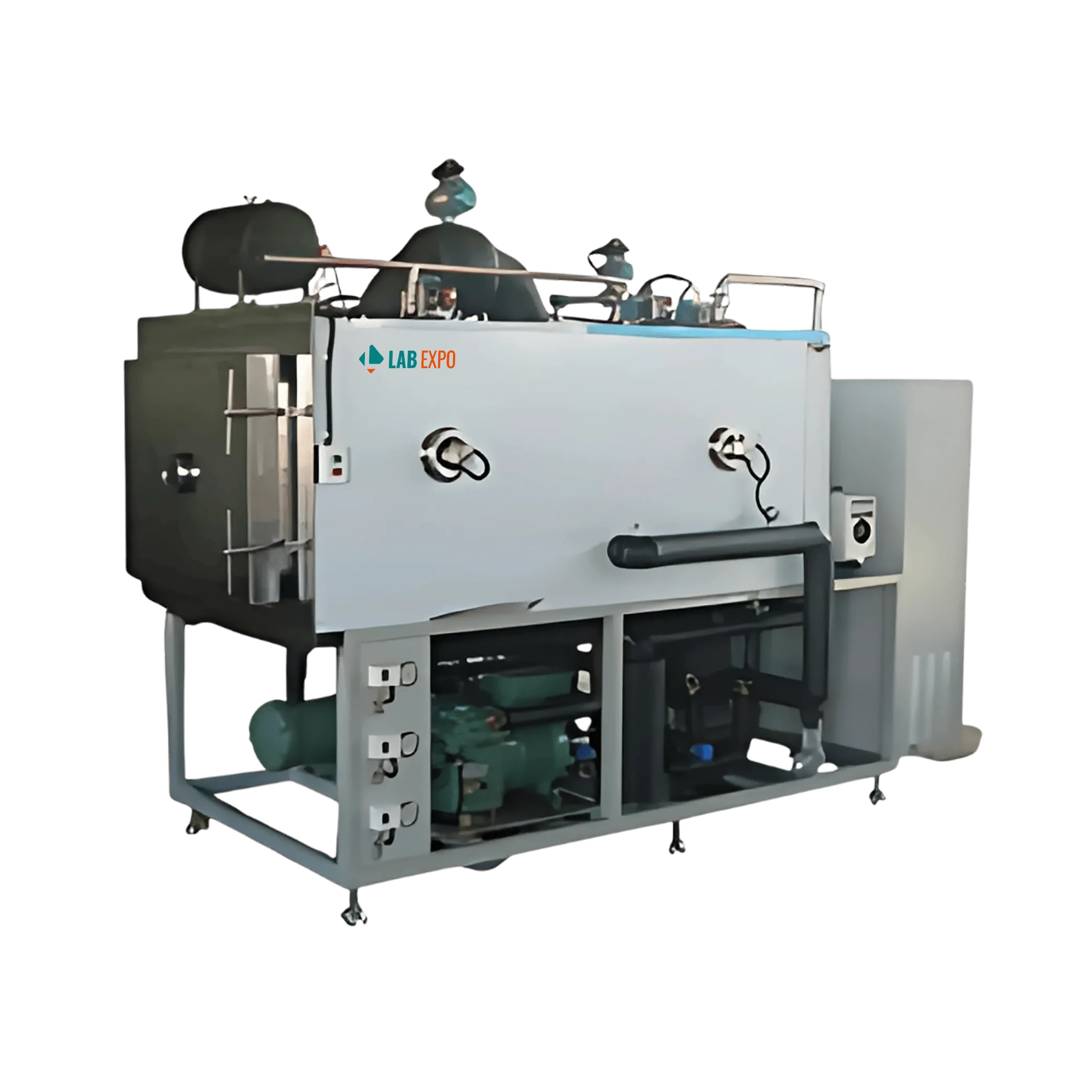

Large Scale Freeze Dryer is designed to handle lyophilization requirements for large scale production. Equipped with 120 kg condenser capacity and a temperature of -70 °C it increases the shelf life of the product without destroying the original structure. The temperature controllable shelves are designed for complete moisture removal and storage facilities of various biological materials. Precise vacuum control enables faster freeze drying and reproducible results.
Specifications
| Condenser temperature | - 70 °C |
| Condenser capacity | 120 kg / 24 h |
| Freeze drying area | 7.7 m² |
| Bulk capacity | 120 L |
| Vial capacity Φ 12 mm | 49000 pieces |
| Vial capacity Φ 16 mm | 34800 pieces |
| Vial capacity Φ 22 mm | 17800 pieces |
| Shelves | 8 shelves |
| Shelves dimension | Φ 100 mm |
| Shelf temperature | -50 °C to 70 °C |
| Final Vacuum | < 10 Pa |
| Voltage | 220 V / 50 Hz |
| Power | 18 W |
| Dimensions | 5000 x 1500 x 2800 mm |
| Weight | 6000 kg |
Features
Applications
Function Implementation High-volume labs 34800 vial capacity supports large-scale production Industrial freeze drying 120 kg condenser capacity enables 24-hour operation Research facilities -70 °C condenser temperature maintains sample integrity Pharmaceutical production 7.7 m² freeze drying area increases throughput Clinical sample storage -50 °C to 70 °C shelf temperature controls moisture removal
Lab Expo Large Scale Freeze Dryers support industrial lyophilization where high-capacity processing, shelf temperature control, and stable vacuum regulation are required for consistent product preservation. The system operates with temperature-controlled shelves and precision vacuum management to maintain controlled sublimation conditions. Digital monitoring manages temperature and pressure, while integrated alarms, nitrogen valves, and oil-return filtration ensure controlled operation and repeatable drying performance across extended production cycles.
