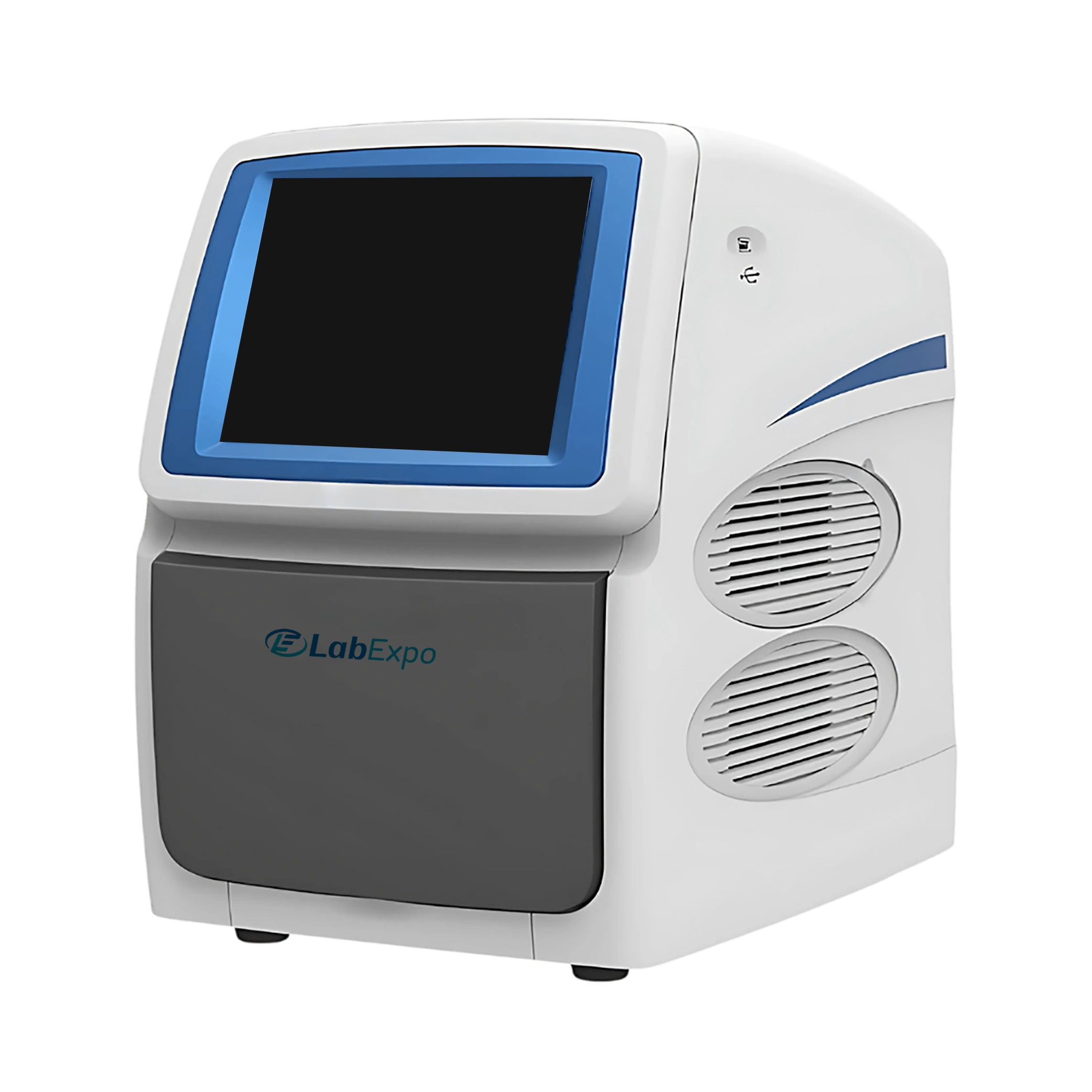

Real Time PCR LE-RT101 offers four independent fluorescence channels for detection of multiple targets in a single run. It supports flexible sample processing from a single reaction up to 96 wells. Built-in LED light to provide illumination during operation. Equipped with top-scanning photodiodes for high sensitivity and uniform signal detection. Our Real Time PCR delivers highly uniform temperature distribution across the block, ensuring consistent results.
Specifications
| Throughput | 1 to 96 |
| Fluorescence Channels | 4 |
| Fluorescence Scanning Time | 7 Seconds |
| Light Source | LED Light Source |
| Detector | Photodiodes, Top Scanning |
| Excitation Range | CH1: 465nm, |
| Detection Range | CH1: 510nm, |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010 copies |
| Heating Method | Peltier |
| Max. Heating Rate | >6.1° C/S |
| Max. Cooling Rate | >5.0℃/S |
| Uniformity Of Thermo Control | ±0.1℃ |
| Accuracy Of Thermo Control | ≤0.1℃ |
| Gradient Interval Range | 1℃ to 40℃ |
| Gradient Block | 12 Row |
| Special Temperature Protocol | Thermal Gradients PCR, Long PCR, Touch Down PCR |
| Linear Correlation | ≥ 0.999 |
| Repeatability | Cycle Threshold (Ct) Value CV≤0 0.5% |
| Control Modes | Mode 1: 10.4-Inch Touch Screen Mode 2: PC Direct Control |
| Operating System For Pc | Win 7, Win 10 |
| Power Consumption | AC 100 To 240V, 50 To 60 Hz |
| Power Supply | 900 VA |
| Packing Dimension | 67 × 58 × 58 cm |
| Gross Weight | 38 kg |
Features
Applications
Real Time PCR LE-RT101 is used for the rapid and accurate detection, quantification, and analysis of DNA or RNA in applications such as disease diagnosis, gene expression analysis, pathogen detection, and genetic variation studies.
Standard Accessories
Power Cord- 1 piece
Network Cable- 1 piece
USB Flash Disk- 1 piece
Fuse Tube- 2 pieces
Sponge Filter- 3 pieces
Catalog
Lab Expo offers Real-Time PCR systems with high-capacity thermal cycler designed for precision and efficiency in molecular biology applications. They accommodate well plates with a transparent bottom for optimal fluorescence detection. Our PCR system supports multi-point temperature control and offers a temperature gradient capability for diverse experimental needs. They operate at advanced emission wavelength ranges ensuring compatibility with a wide array of fluorescence dyes and probes. Our PCR systems feature high-efficiency LED lighting and robust fluorescence detection capabilities for reliable performance.
