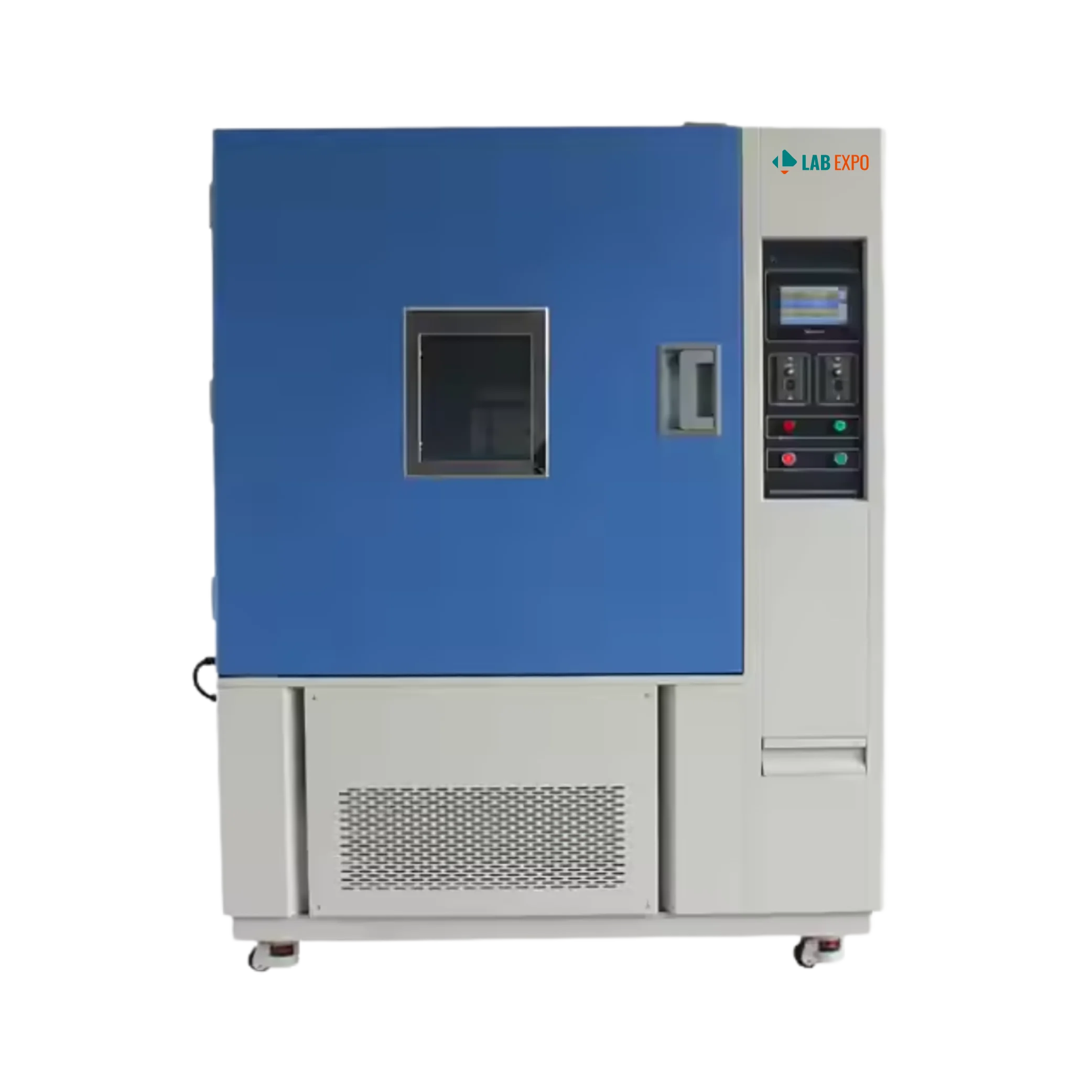

Temperature & Humidity Test Chamber 24-TTC208

Temperature & Humidity Test Chamber 24-TTC208 has a temperature range of -20℃ to 150℃, -40℃ to 150℃, or -70℃ to 150℃ for temperature testing. It has a spacious capacity of 800L suitable for a variety of testing applications. It has a humidity controller and sensor to ensure consistent humidity for reliable test results. Our test chamber has an LCD touchscreen for easy monitoring of set and actual working parameters.

Specifications

Capacity 800 L
Temperature range (-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃
Temperature cooling rate 5 ℃ / min
Temperature heating rate 3 ℃ / min
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity range 20 % to 98 % R.H
Humidity deviation ± 2.5 % RH
High temperature 180 ℃
Lowest humidity 10 % RH
Internal dimension (D x W x H) 800 x 1000 x 1000 mm
Overall dimension (D x W x H) 1280 x 1550 x 2110 mm

Features

  • Easy to use LCD touch screen controller and a graphic display to allow monitoring of the set and actual working parameters
  • Humidity controller
  • Corrosion resistant interior chamber
  • Observation window: Built-in toughened double layered glass
  • Independent R and D software
  • Humidity regulation with capacitive humidity sensor
  • Inner chamber material : Stainless steel plate
  • Thermal-insulating material resistant to high temperature and density
  • Compressor overload switch
  • Unit shuts down after alarm for over heating
  • Safety self-protection function includes short circuit, over temperature, motor overheating, compressor pressure, fuse failure
  • Windows with anti - sweat heater device to prevent water from vapor condensation and water droplets

Applications

Temperature & Humidity Test Chamber is extensively used in basic and advanced research, pharmaceutical industries, chemical industries, food and beverage industry.
